Anodised vs. Powder Coated Process

Anodised vs. Powder Coated Process

When deciding between anodizing and powder coating for finishing metal parts, it’s important to understand the distinct features, advantages, and drawbacks of each process. Both are popular for improving the durability, aesthetics, and functionality of materials, but they each have unique characteristics that make them better suited for different applications. Below is a detailed comparison of anodizing vs. powder coating to help you choose the best option for your needs:

 Process Overview of Anodizing

· Electrochemical process that uses acid electrolytes to increase the thickness of the natural oxide layer on metals, typically aluminum.

· The metal acts as the anode in an electrolytic cell, causing the metal surface to oxidize and form a protective oxide layer.

· The process can also involve coloring through dyes or metallic salts, and the coating is integrated into the metal surface, making it permanent.

Process Overview of Powder Coating

· A dry coating process where a powdered paint (resin-based) is applied electrostatically to the metal surface and then baked in an oven to cure and harden.

· The powder is composed of pigments, resins, and additives, and once cured, it forms a protective coating that is bonded to the surface of the material.

· Can be applied to a wide range of metals and other materials (such as steel, aluminum, and some plastics).

Durability and Protection of Anodizing

· Highly durable and resistant to corrosion, making it ideal for outdoor and harsh environmental conditions.

· The oxide layer is hard and can be further strengthened in processes like hard anodizing (Type III), offering superior wear resistance.

· Scratch resistance is good, but anodizing can be brittle under heavy impact, and the layer can crack or chip under certain conditions.

· The coating is permanent and integrated into the surface, which prevents it from peeling or flaking.

Durability and Protection of Powder Coating

· Highly resistant to scratching, fading, and chipping, providing a tough finish that is ideal for parts subject to abrasion or rough handling.

· Powder coating also provides excellent corrosion resistance, though it may not be as resistant as anodizing in highly aggressive environments (e.g., marine applications).

· Unlike anodizing, powder coating can peel or chip if the substrate is subjected to severe impacts or abrasion.

· The finish is thicker than anodizing, providing greater protection against surface wear.

Aesthetic and Color Options of Anodizing

· Offers a matte or satin finish, with the natural metal’s texture showing through.

· Can be colored through the anodizing process, offering sublime, transparent colors that preserve the underlying metal’s appearance, typically in earthy tones like bronze, gold, and black.

· Limited color palette compared to powder coating, and vibrant colors can fade over time, particularly when exposed to UV radiation.

Aesthetic and Color Options of Powder Coating

· Offers a wide range of color options, from high gloss to matte finishes, with the ability to createtextures, metallics, and even custom effects.

· Powder coating is particularly strong for achieving vibrant, consistent colors, and colors can remain stable over time with proper formulation.

· Clear coating can also be applied over powder coating to provide additional durability and aesthetic options.

Environmental and Health Considerations of Anodizing

· Environmentally friendly as it uses water-based electrolytes and produces minimal VOC emissions.

· The process generates non-toxic waste (such as aluminum oxide), which can be safely disposed of or recycled.

· Requires special handling of chemicals like sulfuric acid, and operators must take precautions against exposure during the anodizing process.

Environmental and Health Considerations of Powder Coating

· Environmentally friendly due to the absence of solvents and VOCs, as powder coatings are dry and do not release harmful gases during application.

· Excess powder can be recycled, making the process more efficient and reducing material waste.

· Some powder coatings can contain hazardous chemicals (e.g., heavy metals or pigments), so care must be taken to follow proper safety and disposal procedures.

Cost and Efficiency of Anodizing

· Higher initial setup costs due to specialized equipment and the need for controlled electrolytic baths.

· Labor-intensive process, especially for complex parts that require extensive surface preparation or masking.

· Longer processing times compared to powder coating due to the multiple stages involved (cleaning, anodizing, sealing, coloring, etc.).

· Generally more expensive for high-volume, large-scale production due to the specialized nature of the process.

Cost and Efficiency of Powder Coating

· More cost-effective for high-volume applications, with lower equipment and operational costs than anodizing.

· The application process is faster, with the powder being sprayed on and then cured in a relatively short time, especially for large batches or simple shapes.

· Setup costs can still be high, especially for custom colors or large-scale operations, but these costs are generally lower than anodizing for most applications.

Maintenance and Repair of Anodizing

· The anodized layer is permanent and cannot be touched up without redoing the entire coating.

· Scratches or damage to the anodized surface may expose the metal beneath, which can corrode over time unless repaired.

· Cleaning anodized surfaces is relatively easy; the coating is resistant to staining and corrosion from most common household chemicals.

Maintenance and Repair of Powder Coating

· Touching up powder-coated surfaces can be difficult, especially if the coating has chipped or peeled. Re-coating the damaged area can result in a visible patch or mismatch in color.

· If the coating is chipped or scratched, the substrate may be exposed to corrosion unless the coating is repaired or re-applied.

· Powder-coated surfaces are easy to clean and maintain with standard cleaning agents and are resistant to many chemicals, oils, and stains.

Applications of Anodizing

· Best for aluminum, titanium, and magnesium parts that require superior corrosion resistance, wear resistance, and a permanent finish.

· Ideal for applications in aerospace, automotive, marine, architectural, and electronics industries.

· Preferred when a matte, natural metallic finish is desired or when color stability is important.

Applications of Powder Coating

· Suitable for a wide range of metals and can be used for parts of various shapes and sizes.

· Ideal for applications in industries like automotive, appliances, furniture, outdoor equipment, and construction.

· Preferred for projects requiring vibrant colors, smooth, glossy finishes, and better impact resistance.

Conclusion: Anodizing vs. Powder Coating

Choose Anodizing if

· You need maximum corrosion resistance, especially in harsh or outdoor environments.

· You’re working with aluminum, titanium, or other non-ferrous metals.

· You require a natural metallic finish or matte appearance.

· You need a permanent finish that is chemically bonded to the substrate.

Choose Powder Coating if

· You need a wide range of colors, including high gloss and textured finishes.

· You want a cost-effective and faster coating process, especially for high-volume or large-scale production.

· You need better impact resistance and scratch resistance for parts that will undergo heavy use or handling.

· You want a more aesthetic and decorative finish.

Ultimately, the best choice between anodizing and powder coating depends on your specific needs for durability, aesthetics, cost, and the intended use of the finished product.

What Are the Main Features of the Powder Coating Process?

The powder coating process is a widely used method for finishing metal and other materials with a durable, attractive, and uniform coating. It is often used in industries such as automotive, architecture, appliances, and furniture. Here are the main features of the powder coating process:

1. No Solvents

Feature: Powder coating uses dry powder, which is applied without any solvents or liquids.

Benefit: This eliminates the need for volatile organic compounds (VOCs) found in liquid coatings, making it more environmentally friendly. It also reduces the risk of flammability.

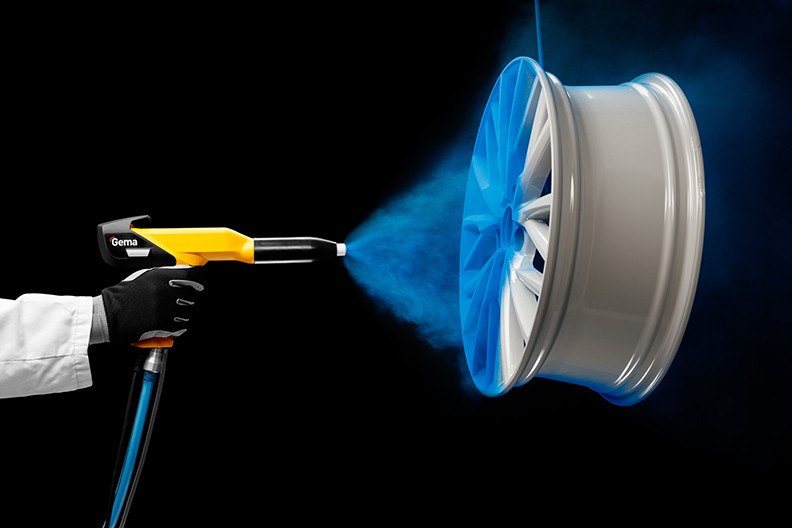

2. Electrostatic Application

Feature: The powder is applied using an electrostatic spray gun, which charges the powder particles and causes them to adhere to the surface of the object being coated.

Benefit: The electrostatic charge ensures a smooth, even coating with minimal overspray. It also allows for a high transfer efficiency, meaning less waste.

3. Curing Process

Feature: After the powder is applied, the coated item is placed in a curing oven where it is heated to a specific temperature (typically between 160°C and 200°C or 320°F to 400°F) for a set period of time.

Benefit: The heat causes the powder to melt, flow, and chemically react to form a tough, uniform coating that bonds to the substrate. This creates a strong, durable finish that is resistant to scratches, chipping, fading, and corrosion.

4. Wide Range of Finishes

Feature: Powder coatings come in a variety of finishes, including matte, glossy, textured, smooth, and metallic.

Benefit: This provides flexibility in aesthetic options for a wide range of applications. Additionally, powders can be tinted in virtually any color and can be formulated to achieve different effects, such as wrinkle or hammertone finishes.

5. Durability and Toughness

Feature: Once cured, powder coatings are typically more durable than conventional liquid coatings.

Benefit: The coating offers superior resistance to abrasions, impact, chemicals, UV radiation, and weathering. This makes powder coating ideal for both indoor and outdoor applications, where the finish needs to withstand harsh conditions.

6. Environmental Benefits

Feature: Powder coating is more environmentally friendly than traditional liquid paint.

Benefit: The absence of solvents and VOCs reduces air pollution, and the overspray (excess powder) can often be collected and reused, reducing waste. It also requires fewer chemicals and is safer for workers compared to traditional liquid coatings.

7. Thickness Control

Feature: The thickness of the powder coating can be controlled by adjusting the application process, including the amount of powder applied and the time spent in the curing oven.

Benefit: This allows for precise control over the final coating thickness, which can range from thin (for fine finishes) to thick (for heavy-duty protective coatings).

8. Versatility in Substrates

Feature: Powder coating can be applied to a variety of substrates, including metals (aluminum, steel, iron, etc.), plastics, and even some glass surfaces.

Benefit: The ability to coat diverse materials broadens the applications of powder coating in different industries, such as automotive, architecture, and electronics.

9. Cost-Effectiveness

Feature: While the initial equipment investment for powder coating may be higher than liquid painting, the overall cost per unit can be lower due to the high transfer efficiency and the ability to reuse overspray.

Benefit: Powder coating often results in less waste and more efficient use of materials, leading to lower production costs in the long term. It is also faster than traditional liquid coatings, reducing labor and energy costs.

10. Less Need for Post-Treatment

Feature: Since the powder bonds tightly to the surface and forms a durable finish after curing, there is often less need for post-coating treatment or repairs.

Benefit: This simplifies the process and reduces the time and labor required to finish parts, making it more efficient compared to other finishing methods like electroplating or anodizing.

11. Energy Efficiency

Feature: The curing process uses heat (often from electric ovens), but the process is energy-efficient, particularly for high-volume operations.

Benefit: Modern powder coating systems are designed to minimize energy consumption while still achieving excellent results, making them more efficient for mass production.

12. Safety and Cleanliness

Feature: Since powder coatings are dry and do not contain harmful solvents, they are safer for workers, creating a cleaner working environment.

Benefit: The process reduces the risk of exposure to harmful fumes and chemicals, leading to a healthier workplace compared to traditional liquid painting methods.

What Are the Main Features of the Anodizing Process?

The anodizing process is a popular surface treatment for metals, especially aluminum, to enhance their properties such as corrosion resistance, hardness, and aesthetic appeal. It is an electrochemical process that creates a durable oxide layer on the metal surface. Here are the main features of the anodizing process:

1. Electrochemical Process

Anodizing is an electrochemical process where the metal is immersed in an acid electrolyte bath (commonly sulfuric acid) and acts as the anode (positive electrode) in an electrical circuit.

Electric current flows through the bath, which causes the metal surface to oxidize, forming a controlled oxide layer (aluminum oxide for aluminum) on the surface of the material.

2. Formation of Oxide Layer

The anodizing process increases the natural oxide layer that forms on metals when exposed to air. This layer is thicker, stronger, and more uniform than the natural oxide.

The oxide layer is integral with the underlying metal, meaning it does not peel or flake off like other coatings.

The thickness of the oxide layer can be controlled and varies depending on the type of anodizing, the electrolyte used, and process parameters.

3. Enhanced Corrosion Resistance

One of the primary reasons for anodizing is to improve the corrosion resistance of the material, especially aluminum. The anodized layer is non-reactive and protects the underlying metal from exposure to environmental factors like water, air, and chemicals.

The oxide layer formed is highly resistant to corrosion, making anodized metals ideal for outdoor applications or in environments with high humidity, such as in marine or aerospace industries.

4. Increased Hardness and Wear Resistanc

The anodized oxide layer is harder than the base metal, providing enhanced protection against wear and tear.

Hard anodizing (Type III anodizing) increases the hardness of aluminum significantly, often making it more wear-resistant than steel.

This feature makes anodizing ideal for parts subjected to high friction or mechanical wear, such as automotive components, machinery parts, and aerospace applications.

5. Aesthetic Finishing (Coloring and Appearance)

Anodizing allows for the addition of color to the oxide layer. The process can produce a clear or colored finish depending on the treatment used:

o Clear anodizing preserves the natural metallic look of the metal.

o Colored anodizing involves using organic dyes or metallic salts to create a range of vibrant colors like gold, bronze, black, blue, red, etc.

The color is not a surface coating but a result of the oxide layer, which means it is durable and does not fade easily. However, over time, exposure to UV light and harsh conditions may cause some fading, especially in bright colors.

6. Thickness Control

The thickness of the anodized layer is adjustable and depends on the current density and the duration of the anodizing process.

Thicker oxide layers (up to 100 microns or more) are often achieved in hard anodizing, which provides more significant protection against wear and corrosion.

For standard anodizing, the oxide layer typically ranges from 5-25 microns in thickness, depending on the application.

7. Surface Porosity

The anodized layer is porous, allowing it to be further treated. This porosity is useful for:

1. Dyeing the surface with organic or inorganic dyes.

2. Sealing the pores to make the surface even more resistant to corrosion and staining.

3. The porous structure also allows for better adhesion if additional coatings (such as lubricants or paints) are needed.

8. Sealing

After anodizing, the oxide layer is often sealed to close the pores and enhance its properties, such as corrosion resistance and color retention.

Sealing can be done in several ways:

1. Hot water sealing: Using boiling water or steam to hydrate the oxide, forming a crystalline structure that closes the pores.

2. Chromic acid sealing: Used in hard anodizing to create a more durable seal.

3. Cold sealing: Involves using a chemical sealant that reacts with the oxide layer to close the pores.

9. Environmentally Friendly

Anodizing is considered an environmentally friendly process because it does not involve toxic or harmful substances like solvents or heavy metals.

The process produces minimal waste and can be easily recycled. For example, the aluminum oxide produced during anodizing is non-toxic and can be safely disposed of or repurposed.

Anodizing is safe for both the environment and workers, especially compared to other surface treatments like chromating or electroplating, which may involve hazardous chemicals.

10. Permanent Finish

Unlike paint or powder coatings, which can chip or peel over time, the anodized oxide layer is integral to the surface of the metal, making it a permanent finish.

This makes anodizing an excellent choice for parts that need long-term durability without maintenance or frequent re-coating.

11. Non-Conductive Layer

The oxide layer formed by anodizing is insulating and non-conductive. This property is especially useful in electronic components and electrical enclosures, where electrical isolation or protection from electrical short circuits is required.

12. Applications in Various Industries

· Anodizing is used in a wide range of industries, including:

1. Aerospace: For parts requiring high-strength, corrosion-resistant finishes.

2. Automotive: For both aesthetic finishes (e.g., wheels, trim) and functional components (e.g., engine parts).

3. Architecture: In building facades, window frames, and roofing materials, where durability and aesthetics are important.

4. Electronics: For housings and components requiring electrical insulation or heat dissipation.

5. Consumer goods: On products like smartphones, laptops, and jewelry for both functional and aesthetic purposes.

Conclusion
