Nov. 11, 2024
Welcome to IDEAL's ultimate guide to Clear optical prototyping for automotive lighting!
Our blog is a comprehensive resource for anyone interested in learning more about this versatile and affordable surface finish option.
Clear optical prototyping for automotive lighting is a crucial part of the automotive design and manufacturing process, especially as vehicles increasingly incorporate advanced lighting technologies such as LED and adaptive lighting systems. Here’s an overview of the importance, processes, materials, and considerations for clear optical prototyping in automotive lighting applications.

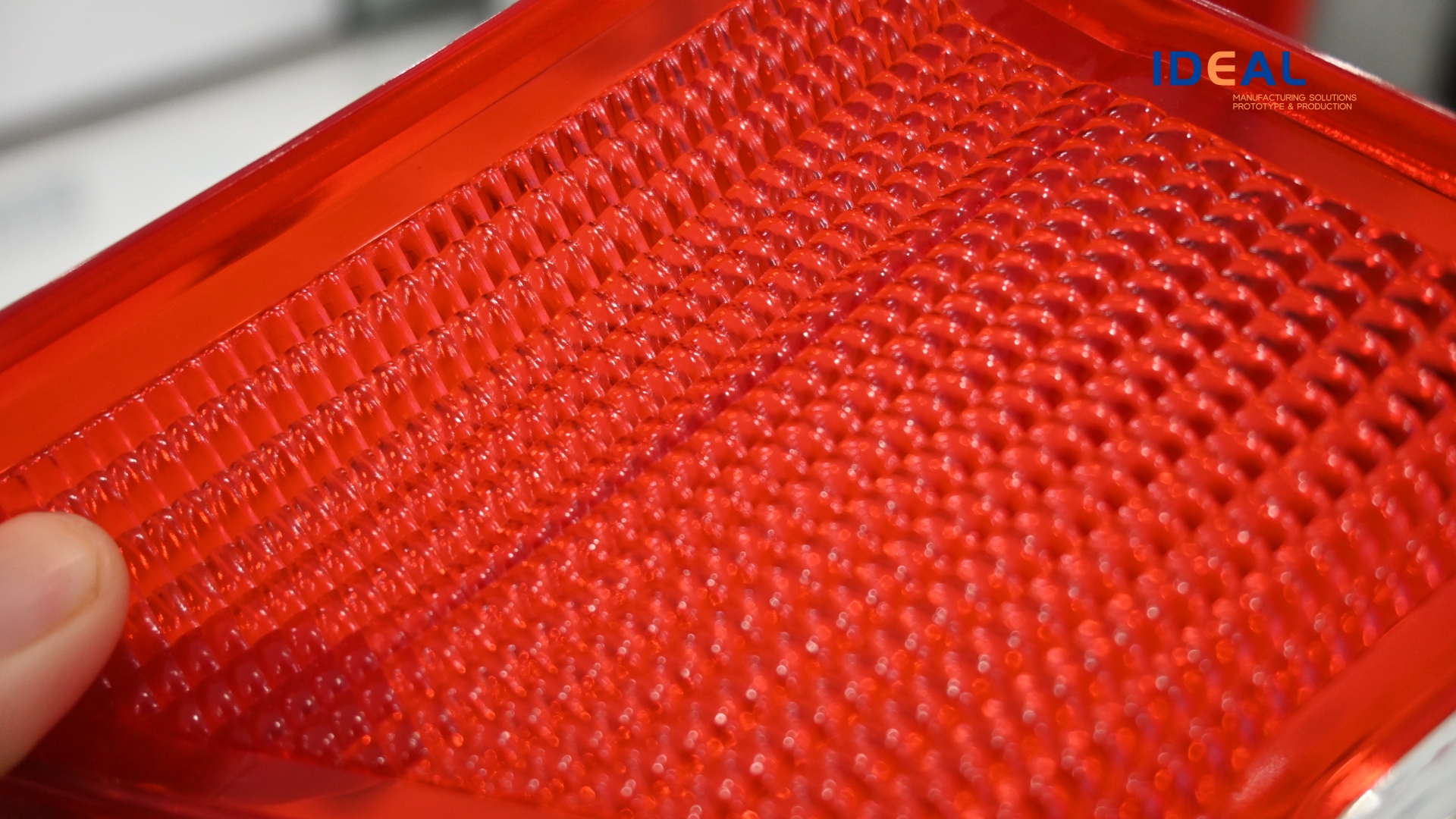

Importance of Optical Prototyping in Automotive Lighting
· Design Validation: Prototyping allows designers to validate the aesthetics and functionality of lighting components before committing to mass production.
· Performance Testing: Prototypes enable engineers to assess light distribution, intensity, and color accuracy, ensuring that the lighting meets regulatory standards and customer expectations.
· Rapid Iteration: Optical prototyping facilitates quick design iterations, helping teams to refine their designs based on testing and feedback.
· Cost Efficiency: Early detection of design flaws or performance issues can significantly reduce costs associated with later-stage manufacturing changes.
Processes Involved in Optical Prototyping
3D Modeling
· Use CAD (Computer-Aided Design) software to create detailed models of the lighting components, such as lenses, housings, and reflectors.
· Simulation tools can analyze light behavior within the design to optimize performance before physical prototyping.
Material Selection
· Choose materials that meet optical, thermal, and mechanical requirements. Common materials include:
· Polycarbonate: Durable and impact-resistant, often used for lenses.
· Acrylic: Offers good optical clarity and is lighter than glass, suitable for less demanding applications.
· Glass: Provides excellent optical clarity but is heavier and more fragile.
Rapid Prototyping Techniques
· 3D Printing: Stereolithography (SLA) or selective laser sintering (SLS) can be used to create clear prototypes quickly. Transparent materials can simulate the optical properties of the final components.
· Injection Molding: For more advanced prototypes, injection molding can be used, particularly if the design is near final and requires higher precision and surface finish.
Optical Testing
· Once prototypes are produced, they undergo a series of tests to evaluate light distribution, intensity, and other optical properties. This can involve using photometric equipment to measure performance.
· Tests for thermal performance and environmental resistance are also essential to ensure durability and functionality in real-world conditions.
· User Testing
Conduct tests with potential users to gather feedback on the design, brightness, glare, and overall aesthetics of the lighting solution.

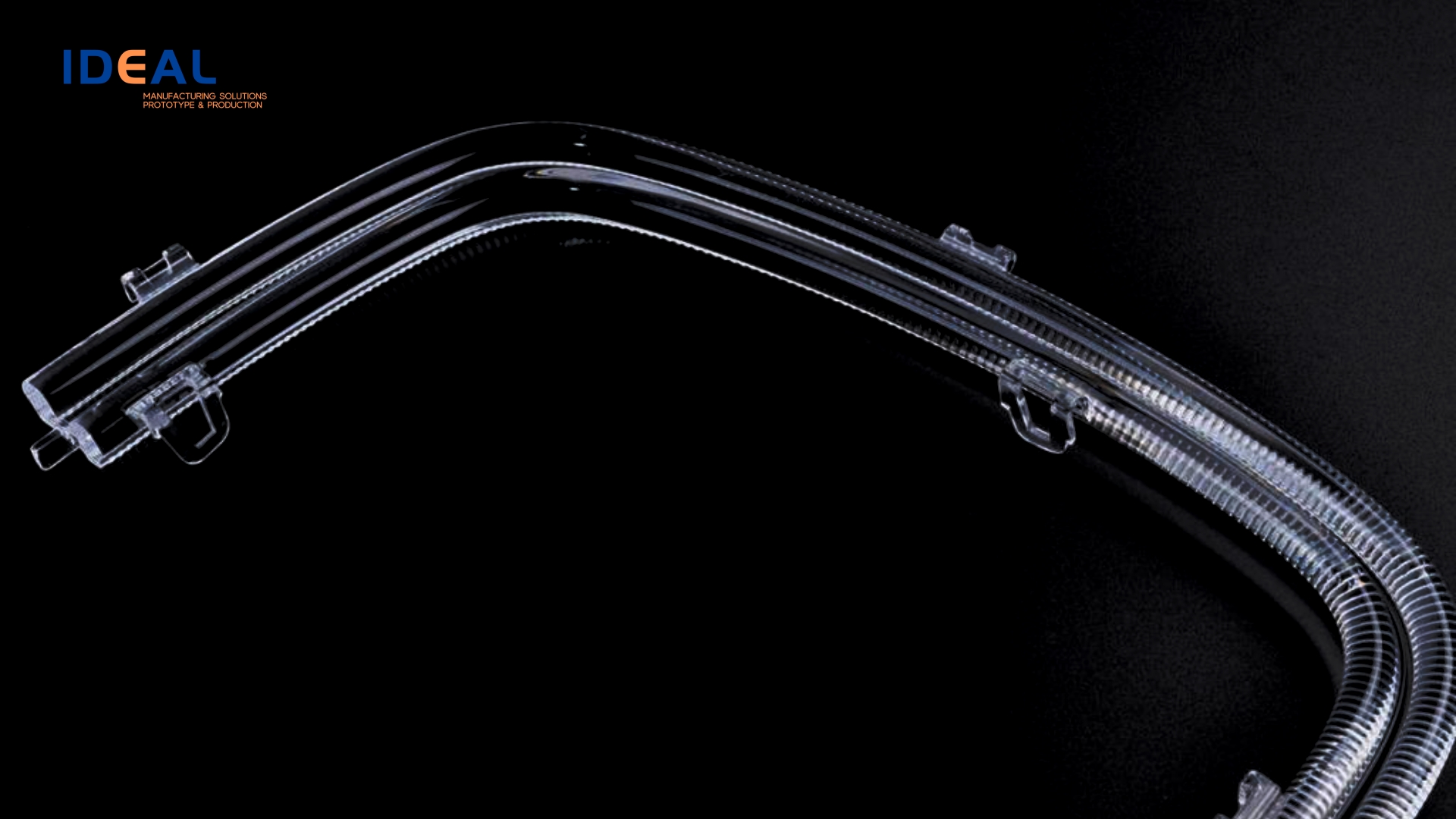

What Need To Pay Attention When Machine Clear Automotive Lighting Prototyping?
Machining clear optical prototypes for automotive lighting is a highly precise and specialized process. Since optical parts for headlights, taillights, and other lighting components demand exceptional clarity and optical performance, there are several critical factors to consider to achieve the best results. Here’s what you need to pay attention to:
1. Material Selection
Choosing the right material is essential for optical clarity, durability, and heat resistance:
· Optical-Grade PMMA (Acrylic): PMMA offers excellent clarity, impact resistance, and durability, making it suitable for prototypes.
· Polycarbonate (PC): Known for strength and impact resistance, PC is another common choice. However, it is softer than PMMA and can be more challenging to achieve a high optical clarity finish.
· Glass-Like Resins: In some cases, specialized optical-grade resins are used, especially if specific refractive indices are needed for optical performance.
Each material has its own machining and polishing requirements, so understanding these is key to achieving a clear finish.

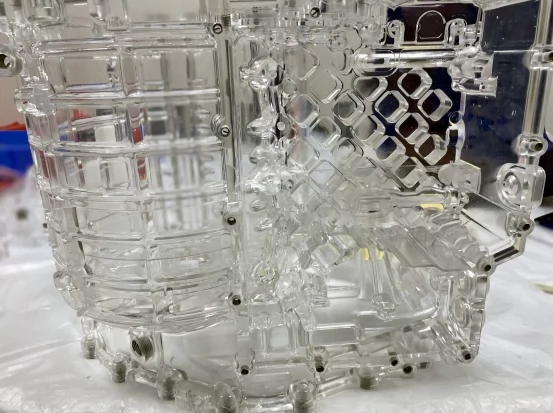

2. Machining Techniques
Precision machining is vital to maintain optical quality without introducing micro-cracks, surface haze, or distortion:
· CNC Milling Parameters: Use high-speed spindles and sharp, fine-toothed tools. For clear materials, a slower feed rate and higher spindle speed can help achieve a smoother surface.
· Tooling: Always use clean, sharp, and dedicated tools for optical work, as dull tools or tools used on other materials can introduce micro-defects or scratches.
· Depth of Cut: Avoid deep cuts, as they can create stress and introduce micro-cracks, which impair optical clarity. A gradual, step-by-step approach works best.
· Coolant Selection: Use coolants compatible with optical plastics to prevent discoloration or hazing. Coolants should be non-reactive and should not introduce impurities or fogging.
3. Avoiding Micro-Cracks and Stress
Machining clear materials can lead to internal stresses, which are detrimental to optical quality:
· Annealing: After rough machining, consider annealing (heating and cooling) parts to relieve internal stress before the final finishing stage.
· Low Feed Rates: Reduce feed rates to avoid mechanical stress. Any stress on the material can lead to internal cracks, fogging, and optical distortion.
· Avoiding Excessive Heat: Clear optical materials are sensitive to heat buildup, which can lead to warping or internal cracking. Maintain low cutting speeds and use coolant if possible.

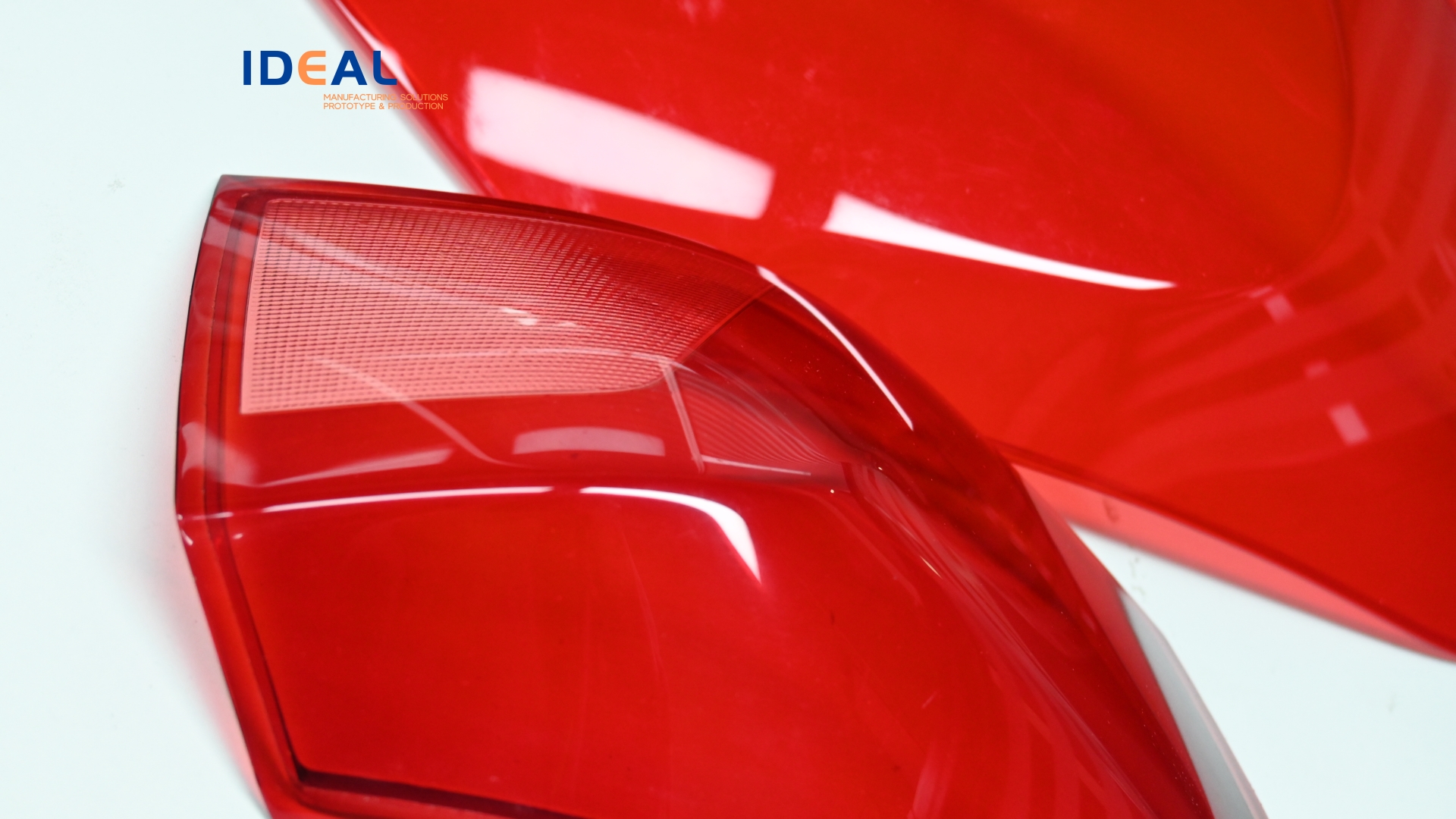

4. Surface Polishing
Achieving a high-gloss, clear finish is critical for optical parts:
· Progressive Sanding: Start with fine sandpaper (600-grit or higher) and gradually move to finer grits (up to 2000+ grit). Wet sanding is highly recommended to avoid heat and friction that could mar the surface.
· Buffing and Polishing Compounds: Use fine polishing compounds specific to plastics, such as cerium oxide or plastic polishing compounds, to achieve a glass-like finish. Avoid abrasive compounds that can scratch the surface.
· Polishing Techniques: Mechanical polishing using soft pads or cloths at low speeds prevents heat buildup. Hand polishing in hard-to-reach areas can ensure uniform clarity.
· Flame Polishing (Optional): For PMMA, flame polishing may be used to achieve optical clarity, but this technique requires skill, as excessive heat can cause warping or yellowing.

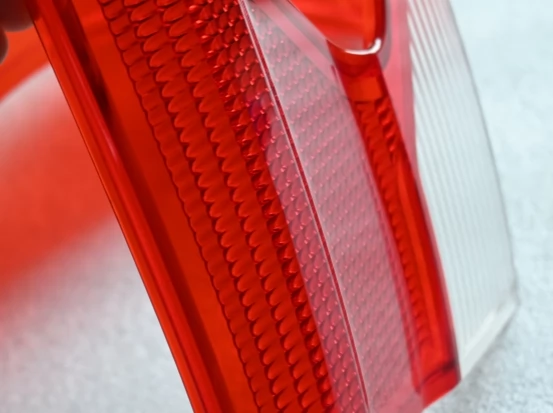

5. Precision and Accuracy in Lens Geometry
For functional automotive optics, the shape and geometry of the part directly affect light output and focus:
· Maintaining Tolerances: Use precision CNC equipment capable of maintaining tight tolerances. Variations in thickness or curvature can distort light output, affecting headlight or taillight performance.
· Avoiding Surface Defects: Any unevenness or imperfection can cause light scatter or distortion. Regularly inspect with optical equipment to verify consistency and accuracy.
· Design for Manufacturability (DFM): Work closely with design engineers to ensure that part geometry is optimized for both machining and optical performance.
6. Inspection and Quality Control
Since optical prototypes for automotive lighting need to meet high standards for clarity and precision, thorough inspection is essential:
· Visual Inspection: Check for haze, scratches, or other imperfections. Even small flaws can impact optical performance.
· Dimensional Accuracy: Use precision measurement tools, such as laser scanners or coordinate measuring machines (CMMs), to confirm that part geometry is within the required tolerances.
· Optical Testing: Test light transmission and refraction properties to ensure the part meets specifications. Light transmission tests or ray tracing can be used to confirm optical performance.
7. Coating and Protection
Once clear machining and polishing are complete, coating the optical parts can protect and enhance the final product:
· Anti-Scratch Coatings: Clear optical materials are often prone to scratches. Applying an anti-scratch coating helps maintain clarity over time.
· Anti-Reflective Coatings: If the prototype is used in environments where light reflections are an issue, an anti-reflective coating can enhance performance.
· UV-Protective Coatings: For parts exposed to sunlight, a UV-protective coating prevents discoloration and yellowing over time.
Machining clear optical prototypes for automotive lighting requires careful material selection, precision machining, thorough polishing, and stringent quality control to meet optical and aesthetic standards. Every step, from machining parameters to final coatings, must be carefully controlled to achieve the clarity, durability, and accuracy required in automotive lighting applications.
