What Is Prototype Tooling?

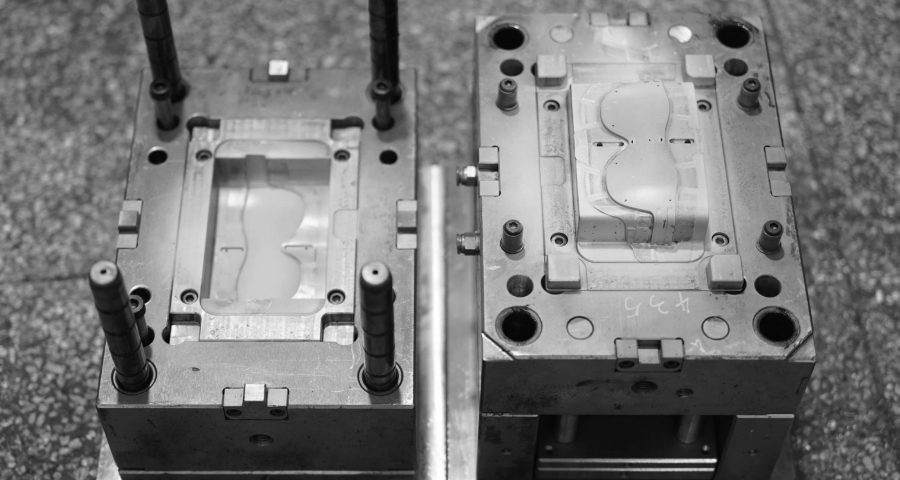

Prototype tooling or Rapid Aluminium Tooling refers to the tools and molds used in the manufacturing of prototypes—early models of a product that are created to test form, fit, and function before full-scale production. These prototypes help designers, engineers, and manufacturers verify the design, assess materials, and evaluate the manufacturing process before committing to a full production run. Prototype tooling is essential in industries like automotive, aerospace, electronics, and consumer products, where precise testing and adjustments are crucial.

Rapid Aluminium Tooling vs Conventional Tooling

Both rapid aluminium tooling and conventional tooling are methods used to create molds or tools for the production of parts, but they differ significantly in terms of cost, speed, complexity, and suitability for different stages of the manufacturing process.

1. Overview

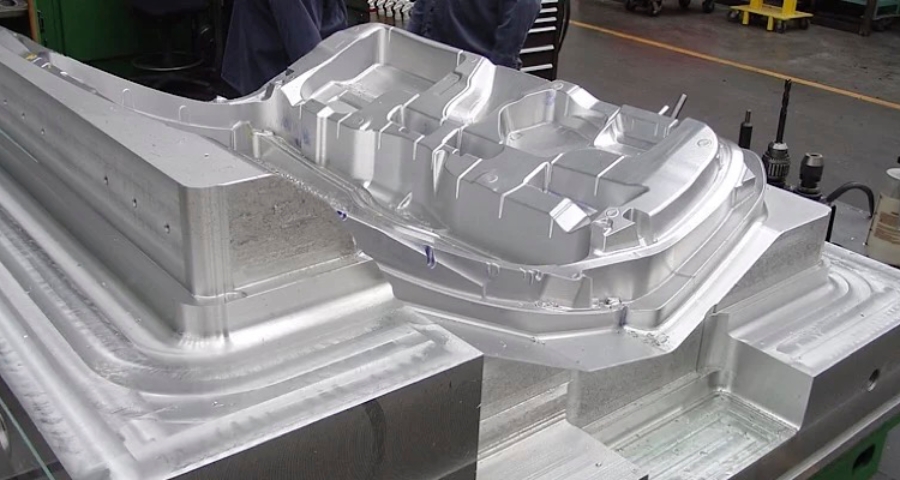

Rapid Aluminium Tooling: Rapid aluminium tooling is a faster, lower-cost alternative to conventional steel tooling. It uses aluminum to create molds or tools, which are designed to be used for a limited production run (often for prototyping or low-volume manufacturing). The key benefit is that aluminum tools can be manufactured much quicker than traditional steel tools, typically using CNC machining or additive manufacturing methods.

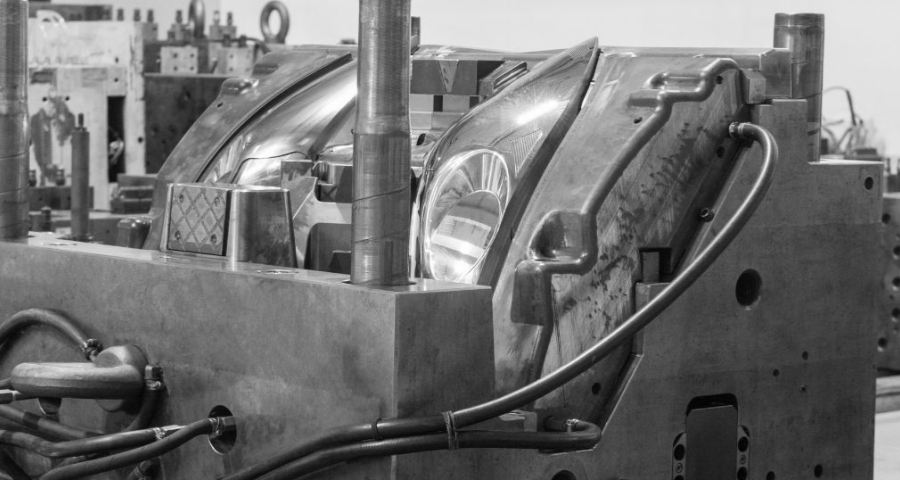

Conventional Tooling: Conventional tooling refers to the creation of high-durability molds, often made from steel, that are used for high-volume, mass production. This type of tooling is built to withstand the pressures of long production runs, and the molds are usually more complex and precise than those used in rapid tooling. Below is a detailed comparison of the two:

Which to Choose?

Rapid Aluminium Tooling: Ideal if you're working on prototypes, low-volume runs, or if you need to test and validate a design before committing to mass production. It’s fast and cost-effective for small quantities, but not suitable for high-volume production due to limited tool lifespan.

Conventional Tooling: Best for mass production where the goal is to manufacture large quantities of a part. If you're looking for high precision and consistency over millions of parts, conventional tooling is the best choice, despite its higher upfront cost and longer lead time.

Challenges of Aluminum Tooling

While aluminum tooling offers advantages such as faster production, lower cost, and flexibility for prototyping and low-volume manufacturing, it also comes with several challenges. Below are some of the key limitations and difficulties associated with aluminum tooling:

1. Limited Durability & Lifespan

Lower Wear Resistance: Aluminum is softer than steel, which means it wears out faster, especially under high-pressure injection molding or machining conditions.

Shorter Tool Life: While steel molds can last for millions of cycles, aluminum tools typically last only a few thousand cycles, making them unsuitable for high-volume production.

Surface Erosion: Repeated exposure to high-temperature molten materials, abrasives, or high-speed operations can degrade the surface of aluminum molds faster than steel.

2. Lower Heat Resistance & Thermal Conductivity Issues

Heat Sensitivity: Aluminum tooling has lower heat resistance than steel, which can lead to deformation or warping when exposed to high-temperature materials (such as some high-performance plastics or metal casting).

Faster Heat Dissipation: While aluminum dissipates heat quickly, this can sometimes be a disadvantage because it cools down too fast, leading to inconsistent material flow and potential defects in the molded parts.

3. Mechanical Strength Limitations

Not Suitable for High-Pressure Applications: In processes like high-pressure injection molding, aluminum tools can deform, leading to dimensional inaccuracies.

Lower Structural Integrity: Aluminum is more prone to scratches, dents, and structural damage than steel, especially when handling complex part geometries or high-stress production processes.

4. Limited Material Compatibility

Not Ideal for Certain High-Temperature Plastics: Some engineering-grade plastics, such as PEEK, PPS, or reinforced nylons, require high mold temperatures, which can degrade aluminum tooling more quickly.

Cannot Handle Certain Metals: Aluminum molds are generally not used for metal casting or high-temperature vacuum forming because they can’t withstand extreme heat like steel or high-strength alloys.

5. Surface Finish and Precision Challenges

Lower Surface Hardness: Aluminum is softer than steel, so it is more prone to surface wear, scratches, and imperfections, which can affect the final part’s appearance.

Limited Surface Finish Options: While aluminum can achieve decent surface finishes, it doesn’t support high-gloss or polished finishes as well as steel molds.

Dimensional Stability Issues: Due to its thermal expansion properties, aluminum tooling can sometimes experience small distortions, affecting precision and repeatability.

6. Higher Maintenance & Repair Costs

Frequent Maintenance Needed: Because aluminum is more prone to wear, it may require more frequent maintenance and refinishing compared to steel.

Difficult to Repair: Unlike steel, which can be welded and re-machined for repairs, aluminum is more challenging to repair once damaged. In many cases, a new tool must be made.

7. Limited for Complex or High-Volume Production

Not Suitable for Mass Production: Due to its shorter lifespan and tendency to degrade under stress, aluminum tooling is not the best choice for producing hundreds of thousands to millions of parts.

Restricted to Simple Geometries: While aluminum can be used for many part designs, it may not be strong enough for highly complex molds with intricate details, undercuts, or thin walls.

When to Use Aluminum Tooling Despite the Challenges?

Even with these limitations, aluminum tooling is still a great choice in certain situations, such as:

✅ Prototyping – When you need a quick, cost-effective way to test a design.

✅ Low-Volume Production – For short runs of a few hundred to a few thousand parts.

✅ Soft Materials – Works well with low-pressure plastics, silicones, and rubbers.

✅ Short Lead Times – When time-to-market is critical, aluminum tooling can significantly reduce production time compared to steel.

Advantages of Aluminum Tooling

Aluminum tooling is widely used in prototyping and low-to-medium volume production due to its cost-effectiveness, speed, and flexibility. Below are the key advantages of using aluminum tooling compared to conventional steel tooling.

1. Faster Production & Shorter Lead Times

Quick Machining & Fabrication: Aluminum is much easier to machine than steel, allowing tools to be produced in days or weeks, compared to months for steel tooling.

Faster Iterations: Ideal for rapid prototyping, allowing design changes and adjustments to be made quickly before finalizing for mass production.

2. Lower Cost Compared to Steel Tooling

Lower Initial Investment: Aluminum tooling can cost 30–50% less than steel tooling, making it ideal for budget-conscious projects or low-volume production.

Cost-Effective for Short Runs: If you only need a few hundred to a few thousand parts, aluminum tooling is a more economical choice than investing in expensive steel molds.

Reduced Maintenance Costs: Aluminum is easier to rework and modify, lowering maintenance expenses.

3. Good Thermal Conductivity for Faster Cycle Times

Better Heat Dissipation: Aluminum cools down and heats up faster than steel, reducing cycle times and improving production efficiency.

Faster Part Production: The quick cooling rate can lead to shorter molding or forming cycles, increasing output speed in processes like injection molding or vacuum forming.

4. Easier to Modify and Repair

More Flexible for Design Changes: Since aluminum is easier to machine and modify, adjustments can be made quickly if design changes are required.

Lower Rework Costs: If a design needs a revision, aluminum molds can often be modified instead of creating a new tool from scratch.

Good for Iterative Development: Ideal for startups, R&D teams, and product engineers who need multiple iterations before finalizing a design.

5. Lightweight and Easy to Handle

Lighter Than Steel: Aluminum is about 2.5 times lighter than steel, making handling, transport, and installation easier and cheaper.

Less Wear on Machines: The reduced weight results in lower wear and tear on CNC machines, presses, and injection molding equipment.

6. Suitable for a Wide Range of Applications

Prototyping & Low-Volume Production: Ideal for testing part functionality before committing to high-volume production.

Low to Medium Complexity Parts: Works well for simple and moderately complex geometries.

Various Manufacturing Processes: Can be used in injection molding, vacuum casting, thermoforming, and low-pressure die casting.

7. Environmentally Friendly

Recyclable Material: Aluminum is 100% recyclable, making it a more sustainable choice for tooling.

Energy-Efficient Machining: Requires less energy to machine than steel, reducing overall carbon footprint.

Bridge to Production Process

Prototype tooling in 5 to 28 calendar days.

Rapid aluminium tooling for volumes up to 5000+ shots.

P20 prototype tooling for volumes up to 50,000+ shots.

NAK80 or S136 prototype tooling for volumes up to 100,000+ shots.
