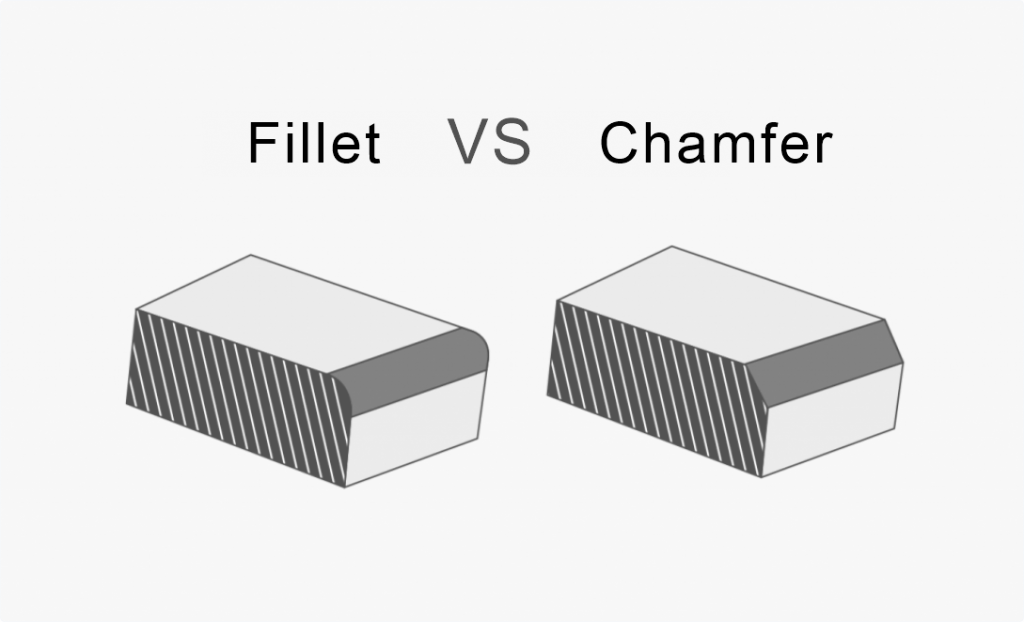

Fillet vs. Chamfer: A Complete Guide for Applications

Fillets and chamfers are common features in engineering, machining, and design that modify sharp edges for functional, aesthetic, or manufacturing purposes. While they may seem similar, their distinctions are significant and dictate their applications.

1. What is a Fillet?

Visually, a fillet edge is a smooth curve that waterfalls from the top of a part to the side. Engineers and designers can create this rounded style of edge for the interior or exterior of a part, and it’s handy in reducing pressure on tools or components that bear heavy loads. This type of edge is a popular solution when you’re casting, machining, molding, and 3D printing objects because the smooth design makes it easier for parts to slide around in comparison to leaving sharp edges on an object.

The two most common ways of crafting a fillet edge is through machining a radial tool path or 3D printing one. The first involves cutting a path between two surfaces on your object with machining tools, whereas the second gets designing through a software program and is set to create this type of surface during the 3D printing process.

Purpose and Design of a Fillet

When there is a change of direction or sections on a part, a fillet edge helps reduce the stress that comes with this switch. Its smooth, rounded edge creates less friction and takes a load off certain areas. This in turn means your parts won’t fatigue as quickly and it raises their load-bearing capacity. When it comes to reducing this stress, you’ll likely rely on a fillet edge over a chamfer for this purpose.

A fillet edge provides a little more than just function — it also helps boost the aesthetics of a part, since its edges are softer and rounded. The appearance of this edge on a part looks concave and rounded on interior surfaces, and unsurprisingly, convex and rounded on exterior corners. A fillet makes for a finish that looks seamless from all angles. However, one thing to bear in mind is that fillets can increase manufacturing time for subtractive processes, such as CNC machining, so incorporating them into your design simply for aesthetics may come at a higher cost.

You may find that a beveled edge reminds you of a fillet edge, but the two are not the same. A fillet is rounded, whereas a bevel is a diagonal cut. The latter is usually used when you need to weld or permanently seal two parts together for a strong joint.

Applications of Fillets

1. Structural Integrity: Fillets help distribute stress evenly, reducing the risk of cracks or failure at sharp corners.

2. Aesthetics: Provides a smooth transition between surfaces for better appearance.

3. Ergonomics: Reduces sharp edges, making parts safer to handle.

4. Fluid Dynamics: Used in piping or aerodynamic components to minimize resistance.

5. Injection Molding: Helps with material flow and prevents weak points during manufacturing.

Types of Fillets

· Internal Fillets: Found in interior corners.

· External Fillets: Applied to external edges.

Example Applications

· Corner transitions in machined parts.

· Blade-to-hub connections in turbines.

· Molded plastic products.

What Is a Chamfer?

Another edge style to know is a chamfer. Its design features an angle or slope between two surfaces of a part that’s flat, as opposed to the fillet edge’s rounded surface. It’s also one option for improving the movement and joining of two or several parts. However, you probably wouldn’t choose a chamfer edge over a fillet style when it comes to reducing high levels of stress. Instead, they’re a great choice for assembling mating parts, especially at a 45-degree angle — though you can really customize them for any angle of your choosing.

Chamfers can be machined, like fillets, and they can be cut by hand. You can also design them in CAD programs, which makes it easier for certain machines or 3D printers to produce when it has already been programmed into the design. You’ll find they’re simpler to cut, too, because there isn’t a radius involved, like with a fillet. This fact also makes them a bit more economical to produce than fillets, so if you're simply looking to break a sharp edge, you may want to consider chamfers.

Purpose and Design of a Chamfer

Like a fillet, a chamfer edge also helps buffer the original sharp edges of a part, making assembly easier for mating components. You can choose from a variety of sizes and angles and lean on a single chamfer tool, countersink, or spot drill to make it.

You’ll notice a chamfer looks like a ramp or slanted surface and it will connect the top of a part to another side. When learning about the look and style of a chamfer, you might also think of a tapered edge, but there is a difference. A tapered edge is a gradual reduction in a specific dimension over the length of an object, whereas a chamfer is an edge style that’s only applied between two surfaces of a part.

Applications of Chamfers

1. Assembly: Eases alignment and insertion of components, such as screws or shafts.

2. Safety: Removes sharp edges to reduce the risk of injury.

3. Deburring: Used to remove burrs after machining.

4. Aesthetic Design: Creates sharp, defined transitions for a clean look.

5. Machining Efficiency: Easier to machine compared to rounded fillets.

Types of Chamfers

· Internal Chamfers: Applied to interior holes or slots.

· External Chamfers: Found on outer edges or corners.

Example Applications

· Screw holes for countersinking fasteners.

· Edges of gears or pulleys.

· Decorative components in consumer products.

Key Differences Between Fillets and Chamfers

Use Fillets When

· Structural integrity and stress distribution are critical.

· The design requires smooth transitions for fluid or airflow.

· A part will undergo high fatigue cycles.

Use Chamfers When

· Alignment or assembly needs simplification.

· Sharp edges need removal for safety or aesthetics.

· Machining time or costs are a concern.

Combination of Fillets and Chamfers

· Chamfers for assembly points and external edges.

· Fillets for internal corners and areas prone to stress.

Tools and Techniques

· Fillets: Achieved using CNC machining, casting, or 3D modeling tools with radius cutters or smooth tooling.

· Chamfers: Created using beveling tools, chamfer mills, or countersinks

Conclusion

The choice between fillet and chamfer depends on functional, aesthetic, and manufacturing considerations. Proper use of these features enhances the part’s performance, appearance, and manufacturability, making them indispensable in modern design and engineering.
