Heat Treatment of Metals: Everything You Need to Know

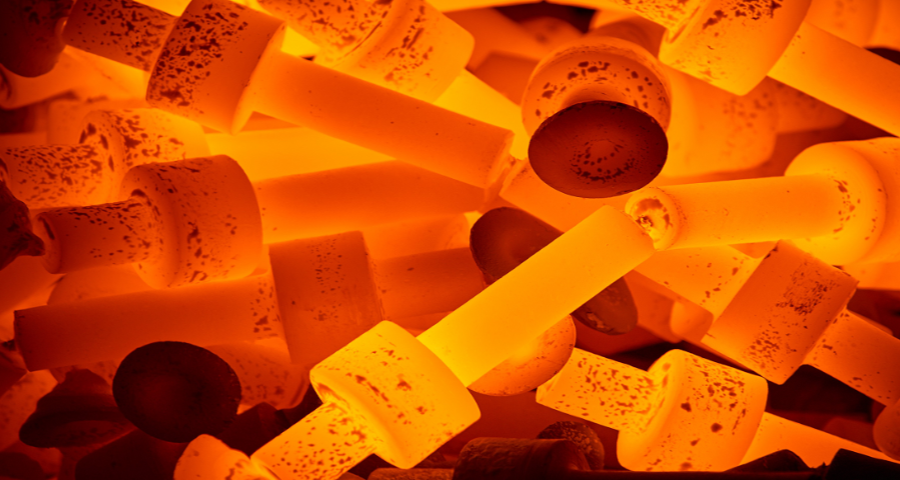

This blog post takes an in-depth look at the ancient yet ever-evolving process of heat treatment of metals, which has spurred significant technological advancements. It explores the role of heat treatment in altering metals' physical and sometimes chemical properties for diverse industrial applications.

Heat treatment has played a crucial role from ancient times to today's cutting-edge technologies used in various machining and metallurgical processes. This post comprehensively explores different heat treatment methods, mainly focusing on steel and the benefits these processes offer.

What Is Heat Treatment?

Think of a chocolate bar. If left in warmth, it softens, but in the fridge, it hardens. Similarly, heat-treating metals can manipulate their properties, like hardness or flexibility, without altering their shape.

Just like controlling the temperature to achieve the perfect chocolate consistency, in Heat Treating, we adjust the metal’s temperature, often up to its upper critical temperature, to serve various purposes. Metals might be heat-treated for hardness, useful in bridge construction, or flexible for jewelry crafting.

How Do heat treatment processes of Metals Work?

Heat treatment process of metals is a precisely controlled process that alters the physical properties of a metal by subjecting it to above-normal temperatures and then cooling it in a specific way.

During heating, the metallic structure transitions into an austenitic phase, where the metal’s crystal structure rearranges itself. This is followed by controlled cooling, which ‘freezes’ these structures in place.

The rate at which the metal is cooled is crucial in determining the final properties. For example, if the metal is cooled rapidly (quenched), it results in a martensitic structure, which is hard and brittle. Conversely, slow cooling (annealing) allows the metal to form a pearlitic, softer, more ductile structure.

This transition in structural phases directly alters the metal’s properties, such as hardness, toughness, strength, and ductility, without changing its shape. These changes are essential for tailoring the metal’s properties to specific applications for tools, construction, automotive parts, or aircraft components.

The specifics of the heat treatment process (the temperature, how long the metal is kept heated, the cooling rate, etc.) depend heavily on the type of metal and the desired properties.

Detailed Look at Heat Treatment Method

There are several heat treatment techniques, each with a specific purpose:

// Annealing

Annealing is a heat treatment process designed to enhance a metal’s ductility (the ability to deform without breaking) and reduce its hardness. This is achieved by heating the material to a specific temperature based on its composition and then allowing it to cool slowly. The slow cooling allows the metal’s internal structure to rearrange and settle in a configuration that reduces internal stresses and improves ductility. Annealing is often used to prepare metal for further machining or shaping processes, making the material easier to work with.

Assume you have a hard, stiff piece of clay that’s difficult to shape. If you warm it up, the clay becomes soft and easy to mold into any shape you like. This is similar to the process of annealing in metals.

When a metal is worked on, it can become hard and less flexible, making it difficult to shape further. So, to make it easier to work with, we heat it to a very high temperature. This is like putting the metal in a very hot oven.

After heating, we let it cool slowly. This slow cooling lets the tiny particles in the metal relax and arrange themselves to make the metal softer and more flexible. It’s similar to how letting the warmed clay cool slowly would keep it soft and moldable.

So, annealing is a way of treating the metal that makes it softer, more flexible, and easier to work with, just like warming up and slowly cooling clay makes it easier to shape. This process is beneficial when we need to further shape or machine the metal.

// Normalizing

Think of normalizing like a “reset” button for metal. Over time and after being worked on, metals can get a little out of balance. Their internal grain structure can become irregular, causing uneven hardness or strength.

So, here’s where normalizing comes into play. We heat the metal to a really high temperature, hotter than when you make tea or boil an egg. This heating makes the tiny particles inside the metal (the grains) move around and break up any clumps that have formed.

Then, instead of letting it cool slowly (as we do in annealing), we let it cool down in open air, just like cooling a freshly baked cake on your kitchen counter. This process lets the grains settle back down into a more even, regular pattern, similar to how the cake settles into a stable, yummy treat as it cools.

The result is a ‘normalized’ metal, where the grains are uniform and orderly. This makes the metal stronger and more balanced, ready to be used for our everyday products. And just like that, the metal is ‘reset’ and ready for use!

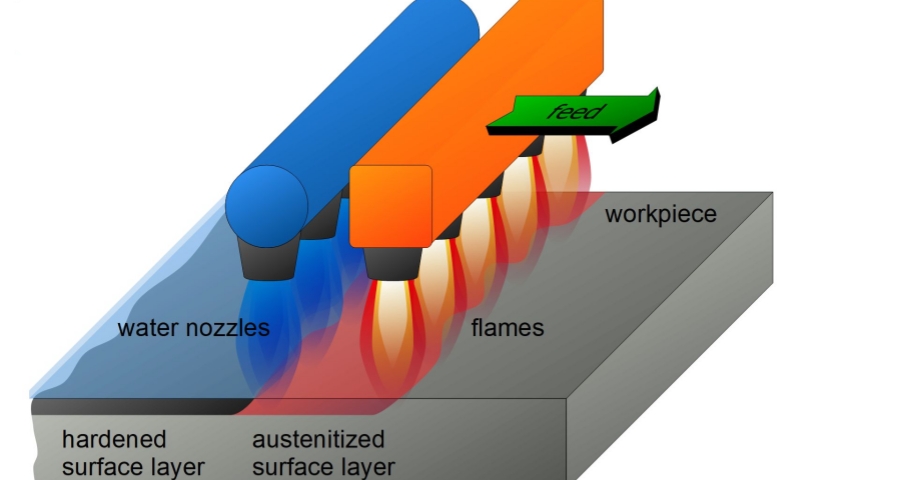

// Hardening

Consider ice cubes. When water is cooled rapidly in the freezer, it hardens into ice. Similar is the process of hardening metals.

Hardening is like a two-step dance for the metal. In the first step, we heat the metal to a very high temperature, hotter than a pizza oven. This heating excites the tiny particles inside the metal and moves around.

We quickly cool it down in the second step, like plunging a hot frying pan into cold water. This rapid cooling, also known as quenching, doesn’t give the particles inside the metal time to relax back into their comfortable, lazy state. Instead, they’re frozen in their excited state.

The result is a harder and stronger metal, just like how rapidly cooling water gives you hard ice cubes. However, similar to how ice cubes are brittle and can shatter, hardened metal can also become more brittle. To reduce this brittleness, we often use another process called tempering. We’ll cover Tempering later on! For now, remember: hardening is heating followed by rapid cooling, making the metal harder and stronger.

// Tempering

After the hardening process, metals can become very hard but also very brittle – think of a glass window, which is hard, but shatters easily. This is not ideal because although we want our metal to be hard, we don’t want it to break easily.

This is where tempering comes in. In tempering, we reheat the hardened metal to a temperature much lower than the hardening temperature; then, we let it cool down. It’s like adjusting the temperature knob on the shower to find that ‘just right’ temperature.

The reheating in tempering allows some of the tightly-packed particles inside the metal to relax a little, similar to how warm (but not too hot!) water relaxes your muscles. This makes the metal less brittle but still keeps most of its hardness.

So, tempering is all about finding the right balance – it reduces the brittleness of the hardened metal while maintaining enough hardness for the metal to be useful. It’s like finding the perfect shower temperature – not too hot or cold, but just right.

Which Metals Can Be Heat Treated?

Not all metals respond equally to heat treatment. Metals commonly subjected to heat treatment include steel, iron, aluminum, copper, and their alloys. For example, steel is frequently heat-treating to improve strength and hardness, whereas aluminum might be heat treating to enhance corrosion resistance.

// Steel

Plain Carbon Steels: Can be heat treated to adjust hardness and strength. Higher carbon content improves hardenability.

Alloy Steels: Contain additional elements like chromium, nickel, molybdenum, and vanadium to improve heat treatment results. Examples: Stainless steel (e.g., 17-4 PH) and tool steel.

Processes: Annealing, quenching, tempering, and normalizing.

// Aluminum Alloys

Heat-Treatable Grades: 2xxx (e.g., 2024), 6xxx (e.g., 6061), and 7xxx (e.g., 7075) series alloys can be heat-treated to improve strength and corrosion resistance.

Non-Heat-Treatable Grades: Alloys like the 1xxx and 3xxx series gain properties through cold working, not heat treatment.

Processes: Solution treatment, aging (precipitation hardening).

// Titanium Alloys

Titanium and its alloys are heat treatable for improved strength and creep resistance. Heat treatment methods include annealing, aging, and stress relieving.

Common in aerospace and biomedical applications.

// Copper Alloys

Heat-Treatable Grades: Alloys with beryllium (e.g., beryllium copper) can be heat treated to enhance hardness and strength.

Processes: Solution treatment and aging (precipitation hardening).

// Nickel Alloys

Nickel-based superalloys (e.g., Inconel, Hastelloy) can be heat treated for enhanced strength, oxidation resistance, and creep resistance. Widely used in high-temperature environments such as turbines and jet engines.

// Tool Steels

Highly heat-treatable and designed for extreme hardness and wear resistance. Heat treatment includes annealing, quenching, and tempering.

// Cast Irons

While cast iron is less commonly heat treated, certain grades (e.g., ductile iron) can undergo heat treatment to improve machinability, toughness, or hardness. Methods include stress relieving and annealing.

// Magnesium Alloys

Heat-treatable grades (e.g., AZ91) improve mechanical properties through aging and precipitation hardening. Used in lightweight applications like automotive and aerospace.

// Metals That Are Not Heat Treatable

Pure metals like pure aluminum, copper, and gold cannot be significantly strengthened by heat treatment. Instead, they rely on cold working or alloying to improve properties. Some alloys (e.g., certain grades of stainless steel like 304) achieve properties through work hardening rather than heat treatment.

Factors Affecting The Heat Treatment Process Of Metals

Several factors come into play during the heat treatment process. These include:

// Type of Metal

Different metals respond to heat treatment in different ways. This is primarily due to variations in their composition and crystal structure. For instance, steel reacts differently to heat treatment than aluminum or copper.

// Chemical Composition

The presence and concentration of various alloying elements in a metal significantly influence how it responds to heat treatment. For instance, the amount of carbon in steel determines whether the steel can be hardened by heat treatment or not.

// Heating Temperature

The temperature to which a metal is heated during the heat treatment process significantly impacts the final properties of the metal. Higher temperatures can lead to greater changes in the metal’s internal structure, potentially leading to increased hardness but also increased brittleness.

// Cooling Rate

The rate at which a metal is cooled after being heated also influences its final properties. Rapid cooling (quenching) can increase hardness, while slower cooling can result in a softer, more ductile metal.

// Heat Treatment Time

The length of time that the metal is kept at the heat treatment temperature can affect the final outcome. For some processes, keeping the metal at the treatment temperature for longer can lead to increased hardness or other desirable properties.

// Prior Mechanical Work

The mechanical history of a metal can influence its response to heat treatment. For instance, a metal that has been heavily cold-worked may respond differently to heat treatment than a metal that has not been worked.

// Atmosphere

The environment in which heat treatment takes place can affect the process. For example, some treatments must be carried out in a controlled atmosphere to prevent oxidation or other unwanted chemical reactions.

One of the primary benefits of heat treatment is enhancing a metal’s mechanical properties. Depending on the specific process used, heat treatment can increase hardness, strength, toughness, and ductility.

Benefits of Heat Treatment

Increased Wear Resistance

Heat treatment can increase a metal’s resistance to wear, making it more durable in applications where it may be subject to friction or abrasive wear, such as in engine components or cutting tools.

Improved Machinability

Certain heat treatment processes can make a metal easier to cut, shape, or otherwise machine. For example, annealing can soften a metal, making it easier to work with.

Stress Relieving

Heat treatment can help relieve internal stresses within a metal, which may have been introduced during welding or casting. This can help to prevent issues such as warping or cracking.

Improved Electrical and Magnetic Properties

Certain heat treatment processes can enhance metals’ electrical and magnetic properties, making them more suitable for use in electrical components and devices.

Increased Resistance to Heat and Corrosion

Heat treatment can enhance a metal’s resistance to heat and corrosion, making it suitable for use in harsh or high-temperature environments.

Improved Dimensional Stability

Heat treatment can help to ensure that a metal maintains its shape and size under various conditions, which is critical in precision CNC Machining applications.

Frequently Asked Questions (FAQs)

Can All Metals Be Heat Treated?

While many metals can undergo heat treatment, not all of them respond similarly. Factors such as the metal’s chemical composition, mechanical properties, and the treatment’s specific conditions can all influence the outcome.

Is Heat Treatment Expensive?

The heat treatment cost varies, considering factors like the type of metal and process used. While it may increase initial costs due to time and equipment needs, its benefits, like durability, can provide long-term savings. Thus, it can be a worthwhile investment.

Can Heat Treatment Be Done At Home?

While some heat treatments could theoretically be carried out at home, it’s generally not recommended without the proper safety measures and expertise. Heat treatment involves high temperatures and potential chemical changes, which could pose safety risks.

How Do I Know Which Heat Treatment Is Right For My Project?

Choosing the proper heat treatment depends on your project’s needs. Consider factors like the metal type, desired properties, and intended use. Often consulting with a metallurgy expert can help guide this decision.

Can Heat Treatment Be Reversed?

Yes, some heat treatments can be reversed through further heat treatments. For instance, hardening can be reversed by annealing. However, not all heat-induced changes are reversible, so correct initial treatment is crucial.
