Precision CNC Machining for the Racing and Off-Roading

The off-road industry includes vehicles and equipment designed for rough terrains—such as dirt trails, sand dunes, mud, and rocky surfaces—commonly associated with outdoor recreational activities, competitive racing, and heavy-duty work. This industry encompasses a wide range of vehicles like ATVs (All-Terrain Vehicles), UTVs (Utility Task Vehicles), off-road trucks, buggies, and motorcycles, as well as related parts and accessories.

Computer Numerical Control (CNC) machining plays a crucial role in the off-road industry, as it enables the precision manufacturing of components critical to vehicle performance, safety, and durability. Here’s an overview of how CNC technology is used in the off-road industry.

Key Applications of CNC in the Off-Road Industry

CNC machining allows for the production of complex parts with high accuracy and repeatability, which is vital in an industry where parts often undergo extreme stress and must withstand harsh conditions. CNC technologies—such as milling, turning, and 3D printing—are widely applied across the off-road sector for the following:

A. Engine Components

The engine is the heart of any off-road vehicle, and many off-road engines have specific demands in terms of performance, durability, and weight. CNC machining is used to manufacture high-precision components like:

Cylinder heads and blocks: CNC machines allow for precision in the shaping of these critical components, ensuring smooth surfaces for better engine efficiency.

Crankshafts, camshafts, and pistons: Parts that need to be lightweight yet durable are often CNC-machined for exact specifications, contributing to optimal engine performance.

B. Suspension and Steering Components

Off-road vehicles require heavy-duty suspension systems and steering components to handle tough terrain, and these parts must be precisely engineered for safety and performance:

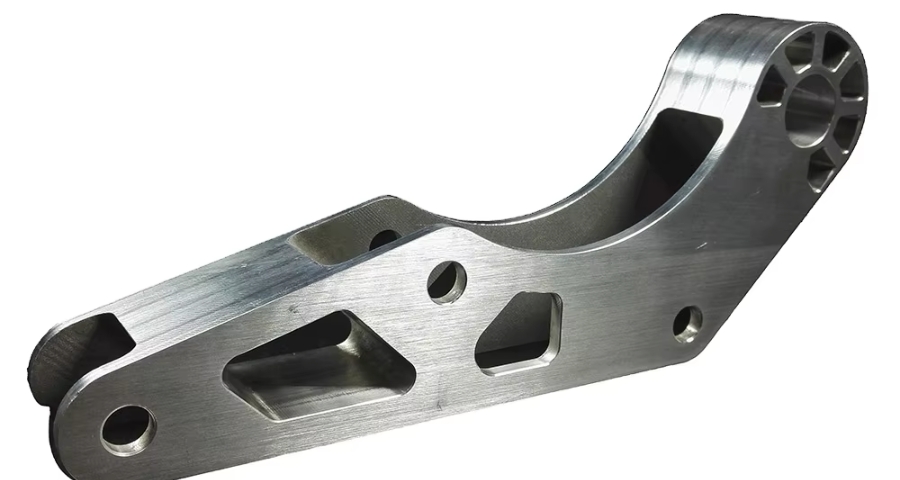

A-arms and shock mounts: CNC machining ensures that suspension components have the correct geometry, strength, and weight distribution.

Tie rods, control arms, and steering racks: Accuracy is essential to ensure proper alignment and handling in off-road conditions.

C. Chassis and Frame Components

The frame provides the structural support for off-road vehicles, and any weakness in its design can affect performance and safety. CNC machining is used to fabricate:

Chassis plates and beams: These must be cut, bent, and welded to tight tolerances to ensure vehicle stability and strength.

Roll cages: Custom-designed roll cages, which protect drivers during rollovers or collisions, require precise tubing cuts, bends, and welds that CNC can achieve with minimal error.

D. Drive Train and Gearbox Components

Off-road vehicles need to transfer power to the wheels effectively, and the drivetrain components need to be both durable and lightweight. CNC machining produces parts like:

Differentials, gears, and axles: High-strength gears and axles that are accurately cut and treated to withstand high torque and off-road abuse.

Transmission components: Precision machining ensures that components like clutch plates, gears, and housings are made to exact specifications for smooth power transfer.

E. Custom Parts and Accessories

The off-road community thrives on customization, with enthusiasts often modifying their vehicles for better performance or a unique look. CNC technology is used for:

Aftermarket parts: Companies can offer customized, precision parts like billet aluminum wheels, custom exhaust systems, and specialized engine parts.

Brackets, mounts, and supports: CNC machines are ideal for producing strong, lightweight brackets that hold various accessories like winches, lights, and bumpers in place.

Body panels and trim: CNC is used to create parts like grilles, spoilers, and skid plates, often out of lightweight yet durable materials like aluminum or carbon fiber.

Materials Used in CNC Machining for Off-Road Parts

The materials chosen for CNC machining off-road parts depend on the specific requirements of each component, such as strength, weight, corrosion resistance, and durability under extreme conditions. Aluminum alloys are favored for their balance of strength and weight, while steel and titanium are preferred for high-strength, high-performance applications. Composites and engineering plastics provide lightweight, durable solutions for non-structural components, further enhancing the performance and customization of off-road vehicles. Each material has its role in ensuring that the final products can handle the harshest environments and deliver optimal performance in off-road conditions.

In the off-road industry, CNC (Computer Numerical Control) machining plays a vital role in manufacturing high-performance parts that can withstand the rigorous demands of off-road environments, such as extreme terrain, high-impact forces, dust, mud, and corrosion. The materials chosen for CNC machining in off-road applications must offer an optimal balance of strength, durability, weight, and resistance to wear and environmental stress. Here’s a breakdown of the most commonly used materials for CNC machining off-road parts：

1. Aluminum Alloys

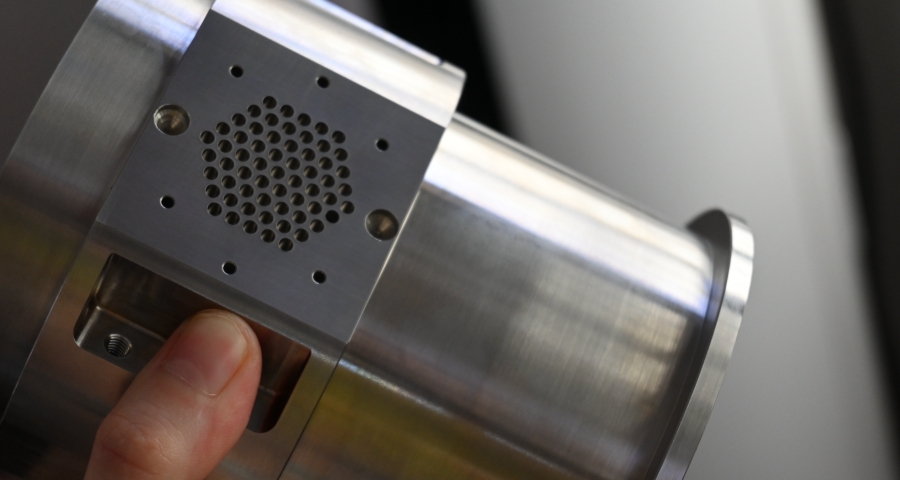

Aluminum is one of the most widely used materials in CNC machining for off-road parts, particularly for suspension components, engine parts, chassis, and wheels. Aluminum is favored for its lightweight nature and corrosion resistance, which is essential for off-road applications where parts are exposed to mud, water, and chemicals.

Common Grades:

6061: Known for its excellent strength-to-weight ratio, corrosion resistance, and ease of machining, 6061 aluminum is often used for suspension arms, brackets, chassis, and more.

7075: A stronger alloy than 6061, 7075 aluminum is used in parts that require superior strength, such as suspension links, axles, and high-performance engine components. It's also highly resistant to fatigue and wear, making it ideal for high-stress applications.

Applications:

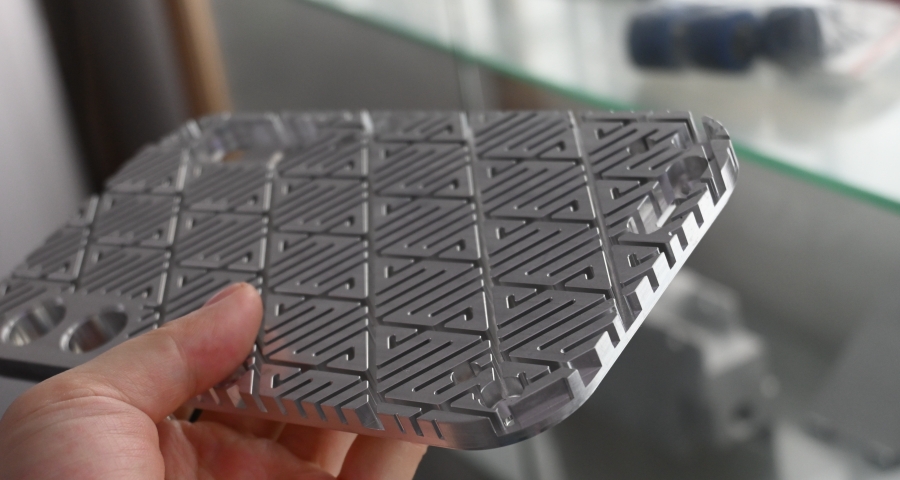

Suspension arms, wheel hubs, skid plates

Engine and drivetrain components (cylinder heads, crankcases)

Chassis and frame components

Aftermarket accessories (billet aluminum wheels, body panels)

2. Steel Alloys

Steel is an essential material in the off-road industry due to its strength, toughness, and durability. While steel is heavier than aluminum, its superior strength makes it ideal for parts that experience high-impact forces and need to endure extreme conditions, such as axles, roll cages, and chassis.

Common Grades:

Chromoly Steel (4130): This is a high-strength alloy steel that combines excellent toughness with relatively low weight. It's commonly used for off-road racing applications where strength and weight reduction are both crucial.

High Carbon Steel: Used in parts like axles, drive shafts, and suspension components, high-carbon steel offers excellent wear resistance and is suitable for parts that require a balance of toughness and rigidity.

Mild Steel: Mild steel is often used for less critical off-road parts, like brackets or lower-strength supports, due to its cost-effectiveness and ease of machining.

Applications:

Roll cages, chassis components, and protective bars

Axles, drive shafts, and control arms

High-strength suspension and drivetrain components

Exhaust systems and mounting brackets

3. Titanium Alloys

Titanium is a high-performance material that offers exceptional strength-to-weight ratio and corrosion resistance, making it ideal for off-road parts that need to be lightweight without compromising on strength. Titanium is more expensive than aluminum and steel, but its performance advantages often justify the cost in racing or high-performance off-road vehicles.

Common Grades:

Grade 5 Titanium (Ti-6Al-4V): This is the most common titanium alloy, offering an excellent combination of strength, toughness, and corrosion resistance. It’s widely used for parts that need to withstand extreme loads, like suspension components and exhaust systems.

Grade 2 Titanium: This is a commercially pure form of titanium that is corrosion-resistant but not as strong as Grade 5. It is often used for non-critical off-road parts or for applications where weight reduction is the primary concern.

Applications:

Exhaust systems, bolts, and fasteners

Suspension components (shock towers, brackets, arms)

High-performance racing parts

4. Stainless Steel

Stainless steel is chosen for parts that must resist corrosion in harsh environments (e.g., saltwater, mud, and rain), making it suitable for off-road vehicles that will be exposed to extreme conditions. While heavier than aluminum, stainless steel offers excellent strength, corrosion resistance, and wear resistance.

Common Grades:

304 Stainless Steel: Offers excellent corrosion resistance and is commonly used for off-road parts like exhaust systems, brake components, and hardware.

316 Stainless Steel: Similar to 304 but with added corrosion resistance, making it ideal for parts exposed to saltwater or harsh environments.

Applications:

Exhaust systems, mufflers, and headers

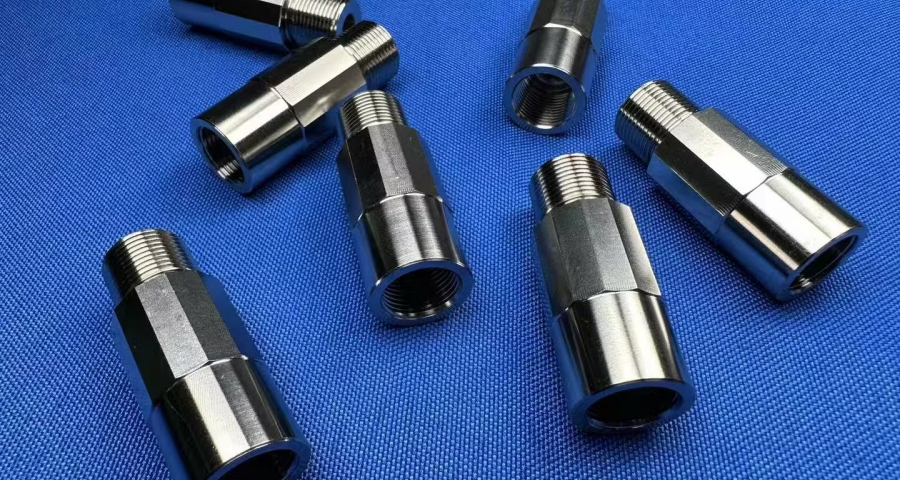

Fasteners (bolts, nuts, washers)

Brake rotors and other high-wear components

5. Carbon Steel

Carbon steel is often used for parts that require high strength and toughness but don’t require the corrosion resistance of stainless steel or the light weight of aluminum. It is more affordable than many other materials, making it a popular choice for structural components in off-road vehicles.

Common Grades:

Mild Steel (A36): Used in parts like brackets, mounting supports, and non-critical structural elements due to its cost-effectiveness and ease of fabrication.

High Carbon Steel (1045, 1060, 1080): Offers higher strength and wear resistance, making it suitable for parts like axles, gears, and other high-stress components.

Applications:

Suspension components, axles, and drivetrain parts

Mounting brackets and structural supports

6. Magnesium Alloys

Magnesium is a lightweight metal with excellent strength-to-weight properties, although it is less common than aluminum due to its susceptibility to corrosion. However, it is used in select high-performance applications where weight reduction is critical.

Common Grades:

AZ31B Magnesium Alloy: One of the most commonly used alloys, offering a good balance of strength and lightness for specialized parts.

AM60B Magnesium Alloy: Used for lightweight castings and structural parts, particularly in high-performance racing applications.

Applications:

Lightweight chassis and frame components

Transmission and engine parts

Racing wheels and high-performance accessories

7. Composites (Carbon Fiber, Fiberglass, etc.)

While not traditionally "machined" in the same way as metals, composite materials like carbon fiber and fiberglass are increasingly being used in the off-road industry, particularly for parts that require a combination of lightweight properties and high strength.

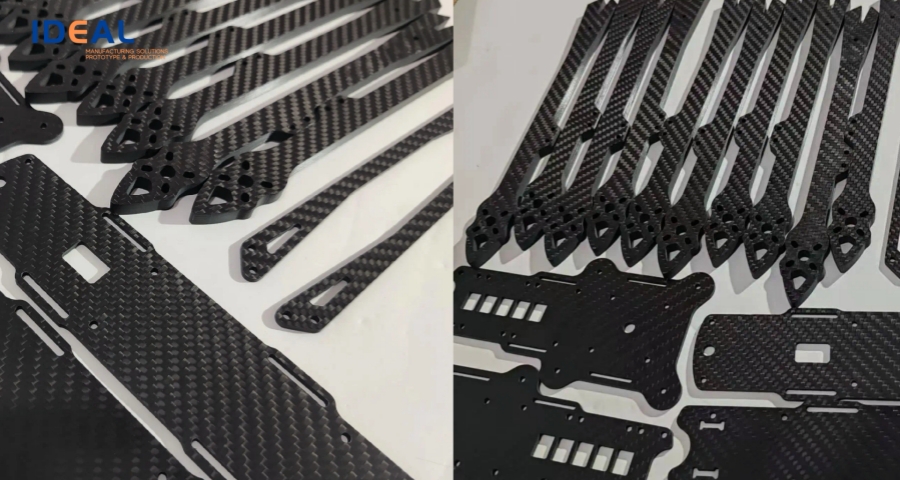

Carbon Fiber: Known for its extremely high strength-to-weight ratio, carbon fiber is used in high-performance parts, including body panels, suspension components, and even structural supports in race vehicles.

Fiberglass: Used in applications where weight savings are important but where extreme strength is less of a concern, such as in body panels, hoods, and fenders.

Applications:

Body panels (hoods, bumpers, side skirts)

Lightweight suspension components and subframes

Custom bodywork and aerodynamic enhancements

8. Polymer Materials (Nylon, Delrin, PEEK)

Engineering plastics are used in off-road vehicles for parts that do not need to be made from metal but still require strength, durability, and wear resistance. These materials are typically used in bushings, gaskets, and seals in off-road components that undergo friction and wear but are not subjected to high mechanical stress.

Delrin (Acetal): A high-strength plastic used for bushings, gears, and bearing components where low friction and high wear resistance are needed.

Nylon: Often used in suspension components, gears, and insulators due to its toughness and ability to withstand harsh conditions.

PEEK (Polyether Ether Ketone): A high-performance thermoplastic that is used for parts that require resistance to heat, chemicals, and wear.

Applications:

Bushings, bearings, and seals

Electrical insulation and connectors

Gears and wear plates

Benefits of CNC Machining in the Off-Road Industry

CNC technology provides several advantages to manufacturers of off-road vehicle parts and accessories:

A. Precision and Consistency

CNC machines provide the accuracy needed to create parts that meet strict tolerances, which is essential for off-road vehicles that need to perform reliably under demanding conditions.

Tight Tolerances: Parts like gears, axles, and suspension components need to meet strict tolerances to ensure proper fitment and performance, especially in off-road racing.

Consistency: CNC machines can replicate exact specifications for high-volume production, ensuring that each part is identical to the next.

B. Customization and Complex Geometries

Off-road vehicles often require custom parts to suit specific performance needs or design preferences. CNC allows manufacturers to create highly intricate designs that might be difficult or impossible to achieve using traditional machining methods.

Complex Shapes: Parts like suspension arms, wheel hubs, and engine blocks often feature complex geometries that CNC machines can easily create.

Rapid Prototyping: CNC machining can be used to rapidly prototype custom parts, enabling manufacturers and enthusiasts to quickly test and refine designs.

C. Efficiency and Reduced Lead Time

CNC machining can streamline production processes, enabling faster turnaround times for manufacturing and reducing overall lead times.

Faster Production Cycles: Automated CNC machines reduce manual labor, speeding up production while maintaining quality.

On-demand Production: Manufacturers can produce low-volume or custom parts more quickly, which is crucial for keeping up with demand in a fast-moving market.

D. Durability and Performance

Off-road parts need to be able to handle extreme conditions, from high-impact crashes to high heat and corrosion. CNC machining produces components with precise dimensions and surface finishes, leading to better performance and longer lifespans.

Stronger, Lighter Parts: CNC allows manufacturers to create lightweight yet strong components, improving the overall performance of off-road vehicles without sacrificing strength or durability.

CNC in Off-Road Racing

In the competitive off-road racing scene, such as the Baja 1000 or King of the Hammers, the use of CNC-machined parts can mean the difference between winning and losing. Custom-engineered components optimized for weight, strength, and performance are essential to meet the grueling demands of off-road racing.

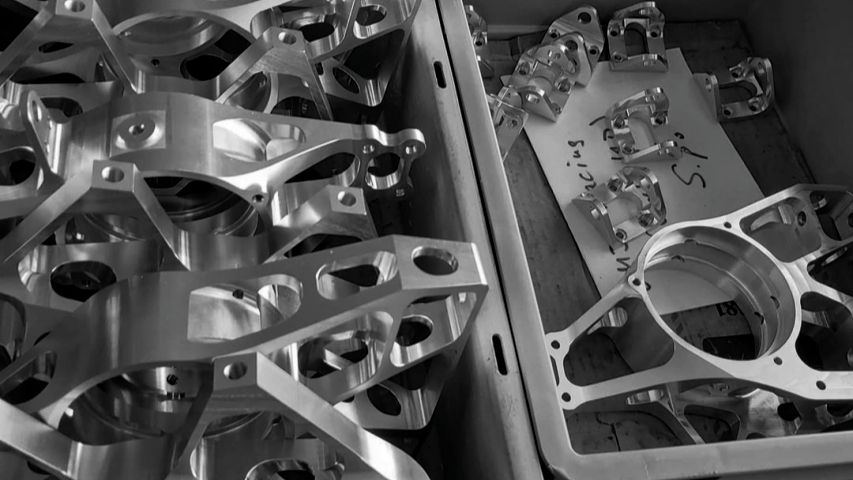

Race-Specific Components: Racing teams often rely on CNC to fabricate parts that are not only lightweight but also durable enough to survive the brutal conditions of off-road racing.

Quick Turnaround for Repairs: In the fast-paced environment of off-road racing, having access to CNC machining can allow for rapid repairs and modifications of critical components during pit stops.

Future Trends in CNC for the Off-Road Industry

The future of CNC machining in the off-road industry is characterized by increased precision, customization, and efficiency, fueled by advances in automation, additive manufacturing, AI, and smart manufacturing. These innovations will allow manufacturers to produce high-performance, durable, and lightweight components for off-road vehicles that meet the increasingly demanding needs of consumers and racing teams. As the off-road market continues to grow and evolve, CNC technology will remain a key enabler of innovation and performance.

The off-road industry is continuously evolving, driven by advances in technology, material science, and manufacturing processes. As off-road vehicles become more specialized and performance-oriented, the role of CNC (Computer Numerical Control) machining in the production of parts will continue to grow, offering precision, efficiency, and customization. Here are some future trends in CNC machining that will shape the off-road industry:

1. Integration of Additive Manufacturing (3D Printing) with CNC Machining

While CNC machining is known for its precision in subtractive manufacturing, additive manufacturing (3D printing) is increasingly being integrated into the production process. This hybrid approach combines the best of both worlds: additive processes for creating complex geometries and subtractive processes (CNC) for achieving high precision and surface finish.

// Prototyping and Rapid Production: 3D printing allows for quick prototyping of off-road parts, which can then be refined and precision-machined using CNC processes. This reduces design-to-production time and enhances product development cycles.

// Complex Geometries: Additive manufacturing enables the creation of parts with complex internal structures (e.g., lattice patterns) that are lightweight yet strong, and CNC can be used to refine the surfaces for the desired finish.

// Customization: Hybrid manufacturing allows for easy customization of parts. Off-road enthusiasts and manufacturers can design bespoke components that are printed and then machined for fitment, strength, and performance.

2. Increased Use of AI and Machine Learning for CNC Optimization

Artificial intelligence (AI) and machine learning (ML) are becoming integral in optimizing CNC machining processes, enhancing both efficiency and part quality. AI can analyze vast amounts of data from CNC operations to improve production techniques, predict machine failures, and optimize cutting paths in real-time.

// Predictive Maintenance: AI-powered systems can monitor CNC machines and predict when maintenance is needed, reducing downtime and improving the longevity of equipment. For off-road manufacturers who need to meet tight production deadlines, this reduces the risk of costly interruptions.

// Real-Time Adjustments: Machine learning algorithms can automatically adjust cutting parameters (speed, feed rates, tool selection) during machining to improve part quality and minimize waste, resulting in faster turnaround times for high-precision off-road parts.

// Design Optimization: AI can help optimize the design of off-road parts for both performance and manufacturability. AI tools can analyze stress points and material behavior, suggesting optimal designs that reduce weight and improve performance without compromising safety.

3. Use of Advanced Materials in CNC Machining

The increasing demand for off-road vehicles to perform better in extreme conditions is pushing the development of advanced materials. CNC machining is evolving to handle new materials with specialized properties, such as lightweight composites, high-performance alloys, and nanomaterials.

// Carbon Fiber and Composites: CNC machining of carbon fiber reinforced polymer (CFRP) and other composite materials is becoming more common for lightweight, high-strength parts such as body panels, suspension components, and chassis. As composite materials improve, CNC machining processes will adapt to ensure high-quality finish and dimensional accuracy.

// Titanium Alloys and High-Performance Metals: The use of titanium and nickel-based alloys in high-performance off-road parts (e.g., suspension, engine components) will increase, and CNC machines will need to incorporate advanced cutting tools and techniques to handle the hardness and toughness of these materials.

// Metal Matrix Composites (MMCs): MMCs combine metals like aluminum with ceramic materials to produce parts that are both strong and lightweight. CNC machining of MMCs will play a larger role in producing off-road parts that require high wear resistance, such as brake components and drivetrain elements.

4. Enhanced Precision with 5-Axis CNC Machining

5-axis CNC machining is a cutting-edge technology that allows parts to be machined from multiple angles without the need for repositioning. This results in greater precision, reduced machining time, and the ability to create more complex geometries. For the off-road industry, where complex and precise components are essential for performance, 5-axis machining can offer several benefits:

Complex Part Geometry: Off-road vehicles often require parts with intricate shapes or angles, such as suspension arms, engine mounts, or custom brackets. 5-axis CNC machining enables these parts to be produced with high precision in a single setup.

Improved Surface Finish: Parts produced through 5-axis machining can achieve better surface finishes, essential for performance-critical components like engine parts or suspension components where friction and wear are a concern.

Increased Efficiency: The ability to machine parts in one continuous process without re-fixturing reduces production time and cost. This is particularly advantageous for low-volume, high-precision parts required by off-road manufacturers or racers.

5. Sustainability and Eco-Friendly CNC Machining

Sustainability is becoming a key focus for all industries, and the off-road sector is no exception. CNC machining processes will evolve to reduce their environmental impact, focusing on energy efficiency, waste reduction, and the use of eco-friendly materials.

// Energy-Efficient CNC Machines: New CNC machines are being designed with energy efficiency in mind. These machines consume less power while maintaining high performance, reducing the environmental footprint of the manufacturing process.

// Recycling and Waste Reduction: Manufacturers are developing methods to recycle cutting fluids, metals, and other materials, minimizing waste and lowering costs. Zero-waste manufacturing is becoming a goal for CNC machining facilities.

// Sustainable Materials: As more sustainable materials such as bio-based composites and recycled metals become available, CNC machining will be adapted to work with these materials, supporting the off-road industry’s push toward greener alternatives.

6. Customization and On-Demand Manufacturing

The demand for customized off-road parts—whether for performance, aesthetics, or repair purposes—continues to grow. CNC machining is at the forefront of providing on-demand, low-volume, and highly customized parts. This trend is particularly important in the off-road industry, where enthusiasts often seek specialized components tailored to their specific needs or preferences.

// On-Demand Manufacturing: Off-road vehicle manufacturers and aftermarket companies can use CNC to produce parts on demand, eliminating the need for large inventories. This reduces waste, lowers storage costs, and ensures faster delivery times for custom orders.

// Customization for Enthusiasts: CNC machines allow off-road enthusiasts to personalize parts, from billet aluminum wheels to custom suspension links. The trend toward personalization will only increase with the availability of CNC services that provide rapid prototyping and one-off part production.

Conclusion

CNC machining plays a vital role in the off-road industry by enabling the precise, efficient manufacturing of high-performance, durable parts. From engine components to custom aftermarket parts, CNC technology allows manufacturers to produce parts that can withstand the toughest conditions while optimizing for weight and strength. As the demand for off-road vehicles, particularly in competitive racing and customization markets, continues to grow, the role of CNC machining will only become more integral in shaping the future of the industry.
