CNC Machining Services

Made to order from 1 to 10,000 pieces on demand
One-on-one support service Response within 12 hours
In-house machine shop, 24/7 operations, Quick turnaround
Wide range of machining technicals. Tight tolerances, Finer surface finishes.
ISO 9001:2015 certified 100% part inspection

Our CNC Macining Services

IDEAL provides a variety of precision CNC machining services including milling, turning, EDM (electrical discharge machining) and wire EDM, and surface grinding. With precision 3-, 4- and 5-axis CNC machining centers, combined with other advanced capabilities and our experienced team, we can handle technical aspects of creating your prototypes and parts, so your team can focus on bringing your product to market. If you need a precision machining company for plastic and metal CNC machining parts like Custom Aluminum CNC Machinining Parts, Contact us today to get your manufacturing solution and details.

CNC Processes We Are Offering

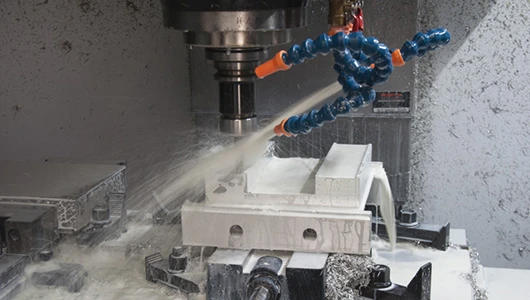

CNC Milling

Compared with CNC turning, CNC milling, especially 5 axis milling can be used to create complex 3D shapes or to apply a machined surface or features to parts made both plastics and metals. The advantage of multi-axis milling machines makes CNC milling process versatile, as well as accurate and repeatable, for creating many different types of part features of complex geometries. Example include holes, curves, slots, angled shapes, and channels. Milling is also ideal for making tooling for pressure die casting and plastic injection molding.

CNC MILLING GUIDELINES
CNC Turning/Lathing

CNC lathes allow us to get high-speed turning of both plastics and metals from bar or block material. The turning process allows the production of complex external and internal geometries, including generating all kinds of threads. For any round shaped components, for example, shafts, worms, spheres, CNC turning is a more efficient method compared with CNC milling.

CNC LATHING GUIDELINES

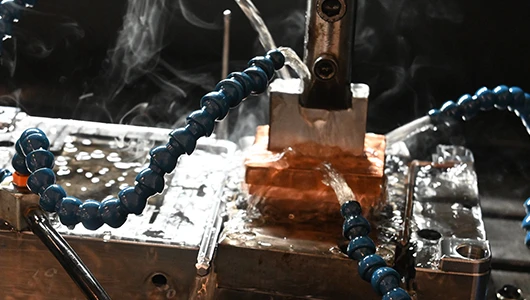

Electrical Discharge Machining (EDM)

Electrical discharge machining (EDM) is an essential manufacturing process used primarily on tool steels for plastic injection molding or pressure die casting. EDM uses a conductive graphite or copper electrode submerged in a dielectric bath of water or oil. When a high voltage current is applied to the electrode it sparks against the tool wall, etching away at the surface to produce deep holes, ribs, undercuts and surface textures that are difficult to machine conventionally. When done properly, EDM can produce excellent surface finishes with tight tolerances, virtually eliminating the need for secondary polishing.

ELECTRICAL DISCHARGE MACHINING (EDM) GUIDELINES

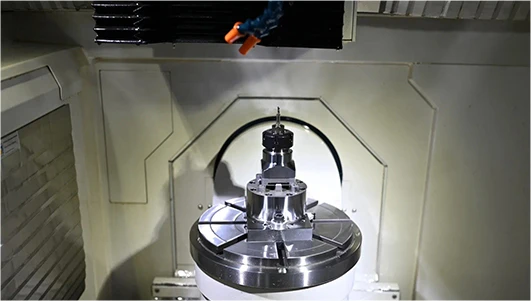

5 Aixs CNC Machining

Multi-axis CNC machining centers come in three variations: 5-axis indexed CNC milling, continuous 5-axis CNC milling and mill-turning centers with live tooling.

These systems are essentially milling machines or lathes enhanced with additional degrees of freedom. For example, 5-axis CNC milling centers allow the rotation of the machine bed or the toolhead (or both) in addition to the three linear axes of movement.

The advanced capabilities of these machines come at an increased cost. They require both specialized machinery and also operators with expert knowledge. For highly complex or topology optimized metal parts, 3D printing is usually a more suitable option though.

5-AXIS CNC MACHINING GUIDELINES

Have any Questions or Suggestions? We would love to help you! Talk to us!

Advantages of CNC Machining

01
Variety of Production-grade Materials

CNC prototype machining can use a variety of production-grade plastic and metal materials, which allows engineers to use the same (or similar) materials as the final part to make prototypes to test the product's performance, function, and manufacturing cost.
02
Consistently Surface Finishing

Prototype machining provides a consistently smooth surface finish with a typical machined surface roughness of Ra 1.6μm and super-finish machined surfaces up to Ra 0.2μm. additional costs.
03
Highly Accurate Parts With Tight Tolerances

CNC machining can create parts with greater dimensional accuracy than most other common manufacturing technologies. During the final finishing machining steps, material can be removed from the workpiece very accurately, achieving very tight tolerances.
04
One-off Custom Parts & Prototypes

In contrast to formative technologies (Injection Molding), CNC machining does not need any special tooling. So, the on-demand production of custom one-off parts and prototypes is economically viable. This is especially relevant for one-off custom metal parts and prototypes, where CNC is the most cost-competitive solution.

How CNC Machining Works?

The CNC (Computer Numerical Control) machining process involves several key steps that transform raw material into finished parts with high precision. Here's a detailed breakdown of the CNC machining process:

CAM Programming

CAM Software: The CAD model is imported into CAM (Computer-Aided Manufacturing) software, which generates the toolpaths needed for machining. The CAM software creates a set of instructions (G-code) that the CNC machine can understand.

Toolpath Generation: The CAM software calculates the most efficient path for the cutting tools, considering factors like cutting speed, feed rate, and tool selection.

Machining Process

Loading the Program: The G-code generated by the CAM software is uploaded to the CNC machine.

Machine Calibration: The operator calibrates the machine by setting reference points, ensuring accurate alignment and positioning.

Cutting Operation: The CNC machine begins the machining process, following the programmed instructions:

Milling: The machine moves a rotating cutting tool along the surface of the material to remove excess material and create the desired shape.
Turning: In a CNC lathe, the material rotates while a stationary cutting tool removes material to create cylindrical shapes.
Drilling: The machine uses a drill bit to create holes in the material.
Tapping: The machine may also use taps to create internal threads in drilled holes.

Real-Time Monitoring: Operators monitor the process to ensure accuracy and address any issues that arise.

Machine Setup

Machine Selection: Choose the appropriate CNC machine based on the part design, material, and required precision (e.g., CNC milling machine, CNC lathe, or CNC router).

Material Preparation: The raw material (metal, plastic, wood, etc.) is prepared and secured onto the machine's work table or fixture.

Tool Setup: Install the necessary cutting tools into the CNC machine's spindle. Tool selection depends on the material being machined and the features of the part.

Zeroing the Machine: The operator sets the machine's coordinate system, establishing a reference point (often called "zero") from which all machining operations will be measured.

Finishing Operations & Documentation

Post-Machining Processes: Once the initial machining is complete, additional processes may be applied, such as deburring(removing sharp edges), sanding, or polishing to enhance the surface finish.

Quality Inspection: The machined part is inspected for dimensional accuracy and quality. This may involve using tools such as calipers, micrometers, and coordinate measuring machines (CMMs).

Assembly or Further Processing: Once the part meets specifications, it can be assembled with other components or undergo additional processes, such as heat treatment or coating, if required.

Documentation: Maintain records of the machining process, including any adjustments made and quality inspection results.

Feedback Loop: Analyze the machining process for efficiency improvements, tool wear, and potential design adjustments for future iterations.

CNC Machining Tolerances

At IDEAL, tolerances are controlled to ISO-2678 Fine (F) for metals and Medium (M) for plastics as standard. Tighter tolerances available on request.

Limits for nominal size	Plastics (ISO 2768-m)	Metals (lSO 2768-f)
0.5mm* to 3mm	±0.1mm	±0.05mm
Over 3mm to 6mm	±0.1mm	±0.05mm
Over 6mm to 30mm	±0.2mm	±0.1mm
Over 30mm to 120mm	±0.3mm	±0.15mm
Over 120mm to 400mm	±0.5mm	±0.2mm
Over 400mm to 1000mm	±0.8mm	±0.3mm
Over 1000mm to 2000mm	±1.2mm	±0.5mm

Precision Machining Tolerance

Aside from standard tolerance CNC parts such as ISO2678M or ISO2678F, IDEAL also offers high-precision CNC machining parts. With high precision milling & turning machines, we are able to catch super tight tolerance for prototype machining & production.

	Metals With Drawing	Metals No Drawing	Plastics No Drawing
Linear Dimension	±0.01mm	ISO 2768 Fine	IS0 2768 Medium
Linear Dimension	±0.08mm	ISO 2768 Fine	IS0 2768 Medium
Linear Dimension	±0.04mm	ISO 2768 Fine	IS0 2768 Medium

Why Choose CNC Machining Service From IDEAL?

Cost Competitiveness. Lower labor costs and overhead expenses compared to many Western countries. This can result in competitive pricing for CNC machining services, especially for high-volume production runs.

Wide Range of Materials. Material versatility allows for flexibility in selection based on different project requirements.

Skilled Workforce and Capacity. With skilled CNC machinists and engineers who are experienced, offering capabilities for complex geometries and high precision, and our substantial capacity suitable for both small-scale prototyping and large-scale production runs.

Quality Assurance. IDEAL adhere to international quality standards (ISO 9001) quality control measures helps ensure consistency and reliability in the finished parts.

24/7 Operation and Flexibility. IDEAL often willing to work closely with clients to customize machining solutions according to specific design requirements. We always offer flexibility in terms of design modifications, prototyping, and iterative improvements.

Integrated Supply Chain and Global Logistics. With access to a comprehensive supply chain network, facilitates sourcing of materials and components, streamlining the production process. Our location in Guangdong Province( Shenzhen) enable efficient shipping of finished parts worldwide.

How IDEAL Improve the Precision of CNC Machining?

Improving the precision of CNC machining involves a combination of techniques, equipment optimization, and best practices. Improving product quality and reducing scrap rates involves several strategies and considerations. Here are some key steps to achieve these goals by IDEAL:

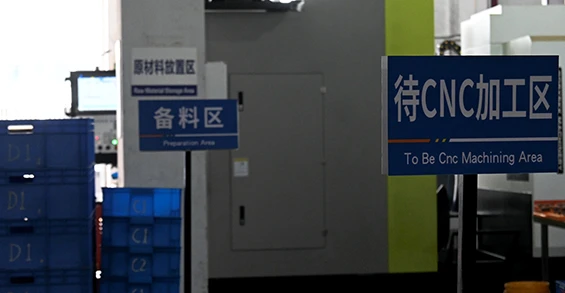

Machine Calibration and Workshop Environment Maintenance

We Ensure that CNC machines are regularly calibrated according to manufacturer specifications. Keep machines well-maintained, checking for wear and tear on components such as spindles, linear guides, and ball screws.

Also IDEAL do best to maintain a stable temperature in the workshop to minimize thermal expansion of the machine and materials.

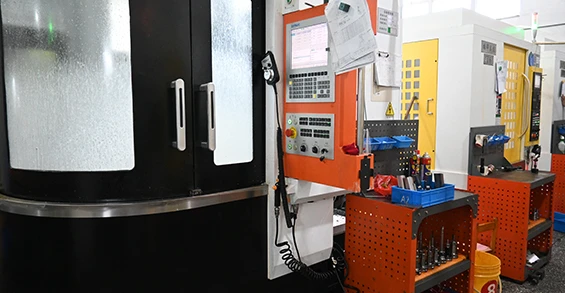

Cutting Parameters Optimization and Programming Techniques

Optimize feed rates and spindle speeds for the material and tool to achieve the best balance between speed and accuracy, and adjust the depth of cut to minimize tool deflection and chatter.

Use optimized toolpath strategies, such as adaptive machining, to minimize tool load and improve finish, and utilize software to simulate CNC operations to identify potential issues before actual machining.
Tool Selection, Management

Use high-quality cutting tools designed for the specific material and application, regularly inspect and replace worn or damaged tools to prevent inaccuracies, and select appropriate tool dimensions for the task to reduce vibration and improve cutting stability.

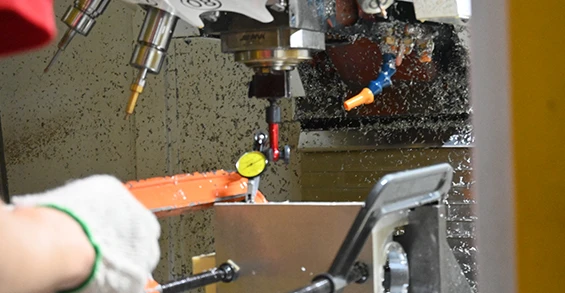

Fixture and Workpiece Stability

Use fixtures to securely hold the workpiece, minimizing movement during machining, and ensure that workpieces are properly aligned and set up before starting a job.

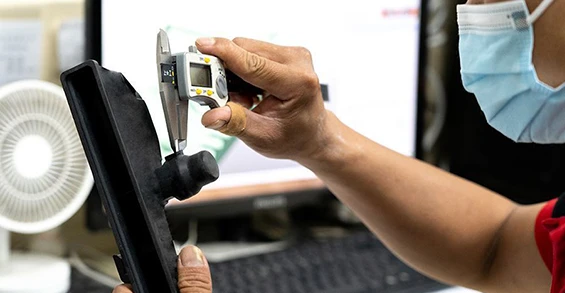

Operator Training and Quality Control in Processing

IDEAL Invest in comprehensive training for operators to ensure they understand machine capabilities and best practices.

We Perform in-process inspections and final checks using precise measuring tools such as coordinate measuring machines (CMM), and keep track of measurements and tolerances to identify patterns and areas for improvement.

CNC Machining Materials

More than 40 different grades of metal and plastic materials are available at IDEAL.

ABS	PEEK	SS303	Titanium	Aluminum 6061-T6	Steel 4140	1018 Low Carbon Steel
Nylon	Polycarbonate	SS304L	Zinc	Aluminum 7075-T6	Steel4130	1045 Carbon Steel
Acrylic	Polypropylene	SS 316L	Cast lron	Aluminum 7050	Steel A514	Zinc-Galvanized Steel
Delrin	PTFE	SS410	Copper 101	Aluminum 2024	Steel4340	Low-Carbon Steel
UHMW	PVC	SS416	Copper 110	Aluminum 5052
PPS	Ultem	SS440C	A2 Tool Steel	Aluminum 6063
PTFE	HDPE	17-4PH	Magnesium
PVC			Brass Bronze
Ultem

Our Maxime Size Range of Your Machine Ability

Maximum Dimensions (3-axis milling): 1270×508×635 (mm).

Maximum Dimensions (5-axis milling): 450×700×400 (mm), Worktable Diameter Φ400 mm.

Have any Questions or Suggestions? We would love to help you! Talk to us!

Overview of CNC Machining Post-Processing Solutions

CNC machining post-processing solutions are essential for enhancing the functionality, durability, and appearance of machined parts. By employing various techniques tailored to specific needs, manufacturers can ensure that their components meet quality standards and perform effectively in their intended applications. This comprehensive approach to post-processing is crucial in industries such as aerospace, automotive, medical, and electronics, where precision and quality are paramount. Discover More in CNC Machining Finishing.

Deburring and Edge Finishing
- Manual Deburring: Using handheld tools such as files, deburring knives, or sandpapers to remove burrs and sharp edges.
- Mechanical Deburring: Using machines like vibratory finishers or tumblers to smooth edges.
- Chemical Deburring: Employing chemical solutions to dissolve burrs and improve surface smoothness.
- Cleaning: Remove oils, dust, and other contaminants from the machined part.
Sanding, Grinding and Polishing
- Polishing: Applying a buffing wheel or polishing machine to further chieve a high-gloss finish and enhance the aesthetic appeal of the part.
- Grinding: Utilizing surface grinders or cylindrical grinders to achieve tight tolerances or specific surface roughness requirements.
- Sandblasting: Propelling abrasive particles against the surface to achieve a matte or textured finish.

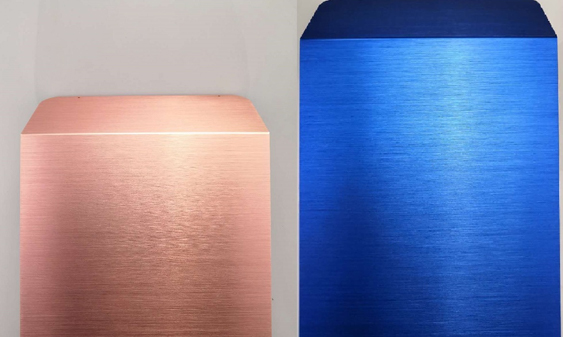

Anodizing, Plating and Passivation
- Anodizing: An electrochemical process that converts the metal surface into a durable oxide layer.
- Plating: Applying a thin layer of metal (e.g., nickel, chrome) through electroplating or other methods.
- Passivation: Treating stainless steel parts with an acid solution to enhance corrosion resistance by forming a passive oxide layer.
Heat Treatment
- Annealing: Heating and then cooling the material slowly to relieve internal stresses.
- Hardening: Heating and quenching to increase hardness and wear resistance.
- Tempering: Reheating after hardening to reduce brittleness and enhance toughness.
Coating & Laser Marking
- Powder Coating: Applying a dry powder that is then cured under heat to form a hard finish.
- Liquid Coating: Using paint or specialized coatings for added protection.
- Laser Marking and Engraving: Adding permanent markings, logos, or identification codes using laser technology.
Assembly & Sub-assembly
- Mechanical Assemby: Using fasteners, screws, or other hardware to join parts.
- Welding or Adhesive Bonding: Permanently joining parts through welding or applying adhesives.
- Sub-assembly: Integrating machined parts with additional components to create sub-assemblies or final products. Testing and verifying functionality and fitment of assembled parts.
Quality Control & Packaging
- Dimensional Inspection: Using tools like calipers, micrometers, or coordinate measuring machines (CMM) to verify dimensions.
- Surface Finish Testing: Checking for surface roughness and finish quality.
- Visual Inspection: Checking for surface defects, scratches, or irregularities.
- Non-Destructive Testing (NDT): Employing techniques like X-ray, ultrasound, or dye penetrant testing to detect hidden defects or flaws.
- Packaging and Labeling: Packaging machined parts securely to prevent damage during shipping and handling. Labeling parts with identification tags, barcodes, or instructions for assembly.

CNC Machining FAQS

Q: Why Choose CNC Machining?

A:

CNC machining is a fast, accurate and versatile solution for making end-use plastic and metal parts in any quantity, without the need for investing in hard tooling or expensive set-ups. No matter how simple or complex the parts
Q: What Materials Can Be Used With CNC Machining?
A:
CNC machining is versatile and can work with a wide range of materials across various industries. Here are some commonly used materials suitable for CNC machining:
1. Metals:
2. Plastics:
3. Composites:
4. Wood:
5. Foams:
6. Ceramics:
The choice of material often depends on the specific requirements of the part or product being manufactured, including factors like strength, weight, corrosion resistance, and cost. Each material may also require specific tooling and machining techniques to achieve optimal results.
Q: Can I Get Tight Tolerances CNC Parts From IDEAL?

A:

Yes, IDEAL use advanced machining techniques such as high-speed machining, peck drilling, or trochoidal milling that may enhance accuracy and surface finish, with Implement in-process inspection techniques to monitor dimensions during machining, and IDEAL have coordinate measuring machines (CMM) or other inspection tools to verify tolerances.
Q: Is CNC Machining Expensive?

A:

CNC machining is generally considered an efficient manufacturing method for both prototyping and production, offering a good balance of quality and speed. However, it’s important to evaluate these factors (Material Costs/Part Complexity/ Tolerance Requirements/ Batch Size) in your specific context to understand the cost implications fully. For the best estimates, consult with a CNC machining service provider with your project specifications.
Q: What Determines CNC Machining Cost?
A:
The cost of CNC (Computer Numerical Control) machining is influenced by several factors:
1. Material Type: Different materials (aluminum, steel, plastics, etc.) have varying costs. Harder materials typically require more expensive tooling and longer machining times.
2. Complexity of Design: Intricate designs with tight tolerances require advanced machining techniques, resulting in higher costs due to additional labor and machine time.
3. Part Size: Larger parts generally take more time and resources to manufacture, increasing costs.
4. Volume of Production: Higher production volumes often reduce the per-part cost due to economies of scale, whereas low-volume runs may have higher costs per unit.
5. Machining Time: The total time a machine spends cutting, which is influenced by tool path efficiency and machining speed, directly affects costs.
6. Setup Time: Each CNC job requires setup time to prepare the machine, which can be significant for complex or custom parts.
7. Tooling Costs: Special tools or custom tooling can increase initial costs, particularly if they need to be created specifically for a job.
8. Finishing Processes: Additional processes such as polishing, coating, or anodizing can add to the overall cost.
9. Quality and Tolerance Requirements: High precision or stringent quality standards may require more rigorous quality control and precise machining, increasing costs.
10. Location and Labor Costs: The geographical location of the machining shop and local labor rates can influence pricing.
Q: How To Reduce CNC Machining Costs?
A:
- Optimize Design for Manufacturability:
- Select Cost-Effective Materials:
- Increase Batch Size:
Q: What Information Will Need To Quote CNC Parts?
A:
To provide an accurate quote for CNC machining parts, the following information is typically required:
1. Part Drawings: Detailed and precise engineering drawings, ideally in CAD format, that include dimensions, tolerances, surface finishes, and any other specifications.
2. Material Specifications: Information on the type of material to be used (e.g., aluminum, steel, plastic), including any specific grades or treatments.
3. Volume: The quantity of parts needed, as this will influence setup and production costs.
4. Lead Time: Any specific deadlines for when the parts are needed, which can affect pricing if expedited services are required.
5. Machining Processes Required: Details about specific machining operations needed (e.g., milling, turning, drilling) and any secondary processes like finishing or assembly.
6. Quality Standards: Any certifications or quality control requirements that need to be met, such as ISO or specific customer standards.
7. Tolerance Requirements: The precision required for critical dimensions which can impact machining complexity and costs.
8. Surface Finish Requirements: Desired surface finish specifications, which may include grit or texture.
9. Assembly Needs: Information on whether the parts need to be assembled and what that entails, as this may involve additional labor costs.
10. Packaging Requirements: Specifications for how the parts should be packaged for delivery.
Providing this information helps IDEAL accurately assess the project and give a comprehensive quote for the CNC machining job.
Q: How Quickly Can I Receive A Quote From IDEAL?

A:

Typically, you can expect to receive a CNC quote within a 2-4 hours or within 1-2 days for mass production parts. For straightforward requests with all necessary information, same-day quotes are possible, whereas more complex projects might take longer, possibly up to a week or more. It's advisable to ask the supplier for their estimated timeline when you submit your request.
Q: What Is Your Leading Time For CNC Parts?

A:

For straightforward orders, lead times may be as short as 3-7 days, whereas custom or highly complex parts might take 1-3 weeks or more. It's best to discuss specific timelines with your supplier to get a more accurate estimate based on your requirements. Leading time for CNC parts can vary significantly based on several factors, including: Complexity of the Part, Qty, Material Type and Availability, Current Workload of the Supplier etc,.

Request Your Free CNC Machining Quote Today

Our improved algorithm decreases metal 5-Axis CNC Machining quotation times by up to 90%. Most quotes are delivered within 24 hrs. and usually much less, depending on project details.

Your customer support partner will contact you directly to ensure you've received and understand all aspects of your quotation and to answer any questions you may have.

Request a Quote

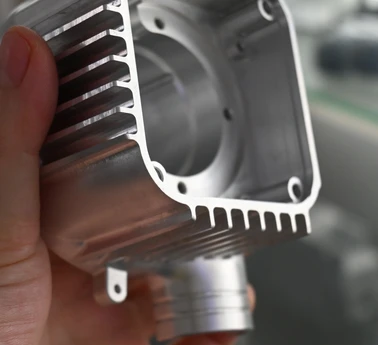

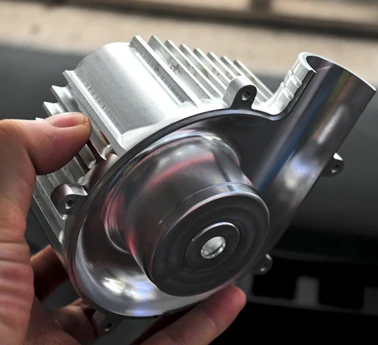

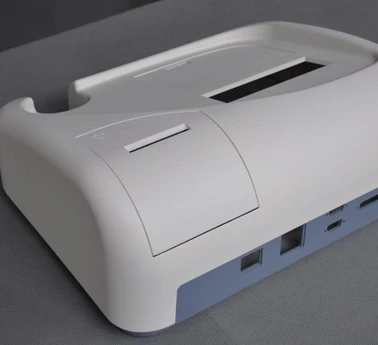

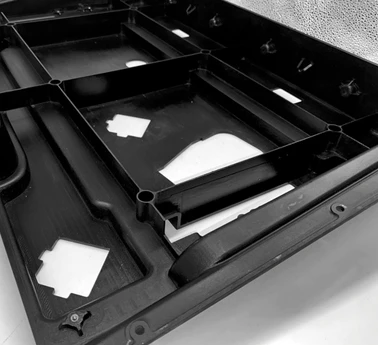

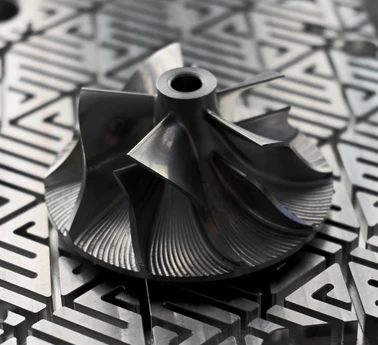

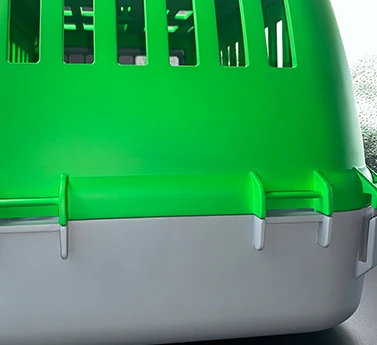

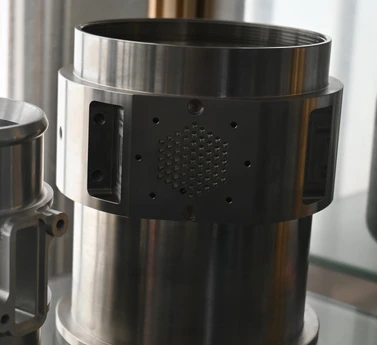

CNC Machining Cases

Our complete CNC aluminum service will accompany your aluminum machining project from the prototype construction to the ended aluminum parts manufacturing.

See What Our Custom Say

My experience working with Fay was great.Clear communication that put me at ease. Very easy to order these parts. Great quality and werecieved exactly what we were expecting - Followed the engineered drawings precisely. Theproduct arrived well packaged, and precisely to spec.

Thank you very much for your consideration and problem solving. lt says a lot about your companyand 1feel comfortable working with you moving forward.

Chris

R&D Manager
IDEAL was able to deliver an accurate and quick service for high quality CNC parts. We inspected the parts, everything was within tolerance in terms of dimensions, and the surface finish on the machined faces is really good. IDEAL has always given us exactly what we needed.

Dennis J.

Engineer
Partnering with IDEAL has transformed our production process. Their precision, reliability, and commitment toquality have been game-changers for us. We've seen a remarkable improvement in efficiency and productquality, allowing us to meet our customers' demands better than ever. IDEAL's team truly understands oulneeds and consistently delivers beyond our expectations.

Jennie Elp***

Senior Mechanical Designer
